B&K 5492B 5.5 Digit Bench Digital Multimeter

B&K Logo 1

The B&K 5492B 5½ (120,000-count) Bench Multimeter suitable for applications in education, service repair, and manufacturing.

The B&K 5492B enhances your productivity with built-in math functions and USB connectivity. Rel, Max/Min, dBm, dB, %, and Hold functions provide educators with a convenient tool to teach basic math concepts.

Additionally, the 5492B offers powerful features not commonly found in other 5½- digit DMMs such as advanced triggering, buffer storage operation, and a GPIB interface option.

BK Distributor sm

PDF Logo    B&K 5492B Datasheet

PDF Logo    B&K 5492B User Manual



If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.

The B&K 5492B 5.5 Digit Bench Digital Multimeter measures volts and amps with great accuracy and stability, with basic VDC accuracy of 0.01%. The meter is also capable of measuring frequency, period, resistance, continuity, and performing diode tests. Readings can be taken at a maximum rate of 57 readings/sec and stored to an internal 512-byte buffer for post acquisition statistical analysis.

B&K 5492B 5.5 Digit Bench Digital Multimeter Features:

  • 5½-digit, 120,000-count display resolution
  • 0.01% basic VDC accuracy
  • Advanced triggering options such as external, bus and event trigger
  • Two and four-wire resistance measurement up to 120 MΩ
  • AC voltage and AC current measurement over wide frequency range (ACV 100 kHz/ACI 10 kHz)
  • AC (RMS) and DC current measurements up to 12 A
  • Limit mode for Pass/Fail testing
  • Save/recall up to 10 instrument settings
  • Built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Compare
  • CATI (1000 V)/CATII (300 V) protection
  • USB (Virtual Com) and RS232 interface
  • SCPI compatible
  • For GPIB interface order 5492BGPIB

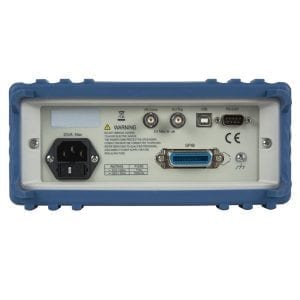

B&K 5492B Conectivity
