Extech CO100 Desktop Indoor Air Quality CO2


Measures Carbon Dioxide (CO2)

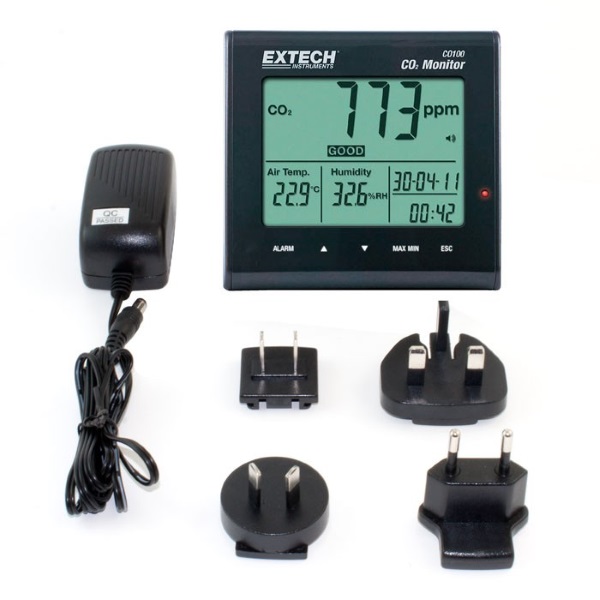

The CO100 is a desktop indoor air quality CO2 monitor that measures carbon dioxide concentrations (CO2) from 0 to 9,999ppm, air temperature and humidity. With user programmable visible and audible CO2 warning alarm. Meter has a maximum/minimum CO2 value recall function. Maintenance free NDIR (non-dispersive infrared) CO2 sensor. Complete with Universal AC adaptor.

PDF Logo    CO100 datasheet

PDF Logo    CO100 User Manual

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
Categories: , Tags: ,

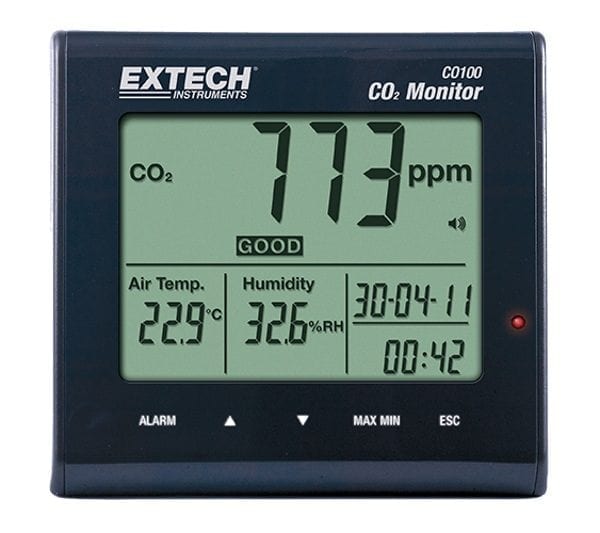

The Extech CO100 Carbon Dioxide (CO2) Monitor is designed for air quality control and health control by measuring Carbon Dioxide level in areas where CO2 could be a concern. The measured CO2 value in ppm (parts-per-million), Temperature, Humidity and Time will be displayed on the LCD along with three CO2 status indications: Good (0 to 800ppm), Normal (800 to1200ppm), Poor (>1200ppm). An acoustic alarm sounds when the CO2 level exceeds a defined level. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.

Desktop Indoor Air Quality CO Features:

  • Checks for Carbon Dioxide (CO 2 ) concentrations
  • Maintenance free NDIR (non-dispersive infrared) CO 2 sensor
  • Indoor Air Quality displayed in ppm with Good (0 to 800ppm) Normal (800 to 1200ppm) Poor (>1200ppm) indication
  • User programmable Visible and Audible CO 2 warning alarm

Extech CO100 Specifications:

Function Range Resolution Accuracy
CO2 0 to 9999ppm 1ppm ±75 ppm or ±5% of reading
Temperature 23 to 122°F 0.1° ±1.5°C/2.7°F
(-5°C to 50°C)
Humidity 0.1 to 90.0% 0.10% ±5%
  • Display:  LCD with backlighting
  • Sampling Interval:  2 seconds
  • Overload Indication:  “-OL-”
  • Sensor Type CO2:  NDIR (non-dispersive infrared) technology
  • Operating Conditions:  -5°C to 50 °C at < 90 % RH
  • Storage Conditions:  -5°C to 50 °C at < 90 % RH
  • Power Supply:  110V~230V AC, output 6.0V DC ≥ 500mA (supplied)
  • Dimensions / Weight:  117 x 102 x 102mm; 204g
