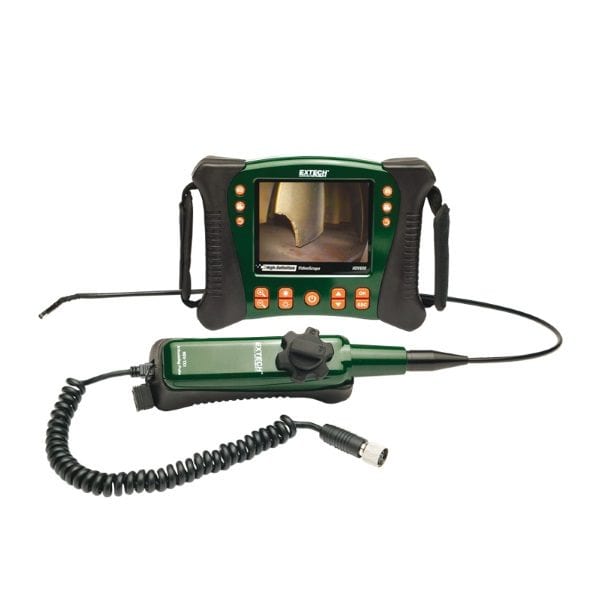

Extech HDV640 Video Borescope Inspection Camera 6mm semi-rigid probe

Extech logo

HD VideoScope with Articulating Transmitter/Probe
Inspection Camera with 6mm Semi-Rigid, Articulating (320°) Transmitter/Probe (1m)

5.7″ color LCD TFT monitor delivers high-resolution (640 x 480 pixels) images and video. Waterproof camera head for glare-free, close-up field of view. 4 bright LED lamps (with dimmer) help illuminate objects. Data can be stored on included 1GB SD memory card or transferred to PC via included USB cable. Memory card can store up to 14,600 images or up to 4 hr. video recording with voice annotation. AV output for viewing images and video on a monitor. Suitable for inspecting inside walls for mold or insect infestation, inspecting ducts, around engines, gears, or process equipment, and to inspect weld integrity. Include AC adapter, AV cable, and carrying case.

Authorised Australian distributor


If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: Extech HDV640 Categories: , Tags: ,

The Extech HDV640 High image resolution on large color display. Images and videos can be stored on SD memory card.

The Extech HDV640 has easy one-hand operation of the articulating camera tip facilitates viewing in obstructed areas where standard camera tips cannot access. Images and videos are viewed on the large high resolution color display and can be stored in SD memory card.


  • Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location
  • HVAC: Inspect inside ducts, behind motors and compressors
  • Automotive: View inside or around engines and transmissions
  • Government: Safety and security inspections
  • Industrial: Inspect weld integrity, process equipment, gears, molding machines
  • Aerospace: Aircraft inspections for debris, cracks or other damage


  • Includes articulating transmitter with 6mm semi-rigid probe (1m) with macro lens
  • Articulating probe tip adjusts up to 320° viewing angle
  • 5.7″ color LCD TFT with high definition 640 x 480 resolution
  • Compact, high-resolution water-proof camera probe
  • Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
  • Glare-free close-up field of view
  • SD memory card included to store more than 14,600 images
  • Video recording (up to 4 hours) with voice annotation
  • AV output for viewing images and video directly on a monitor
  • Video and images can be transferred to a PC via the SD card or USB output
  • Optional wireless transmitter allows you to transmit video up to 30m from the measurement point to your monitor
  • Includes SD card, 3.7V rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera probe, and hard carrying case


Minimum Focus distance 60mm; macro: 15mm
Field of View 65°
Shaft diameter 6mm
Working length 1m
Camera Tip bending 320° (from straight position
160° left, 160° right)
LCD Screen Type 5.7″ color TFT
Pixels 640 x 480 (High Definition)
SD Card 1GB (included)
Operating 4 hours
SD memory card, 3.7V rechargable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera with cable, and hard carrying case
