FLIR MR176 Thermo-hygrometer Moisture Meter with IGM

Flir-2

Easily investigate moisture issues and troubleshoot quickly

  • Ranges:
    • Pin Moisture: 7 to 30% with ±1.5% accuracy
    • Pinless moisture: 0 to 100
    • Relative Humidity: 0 to 100% with 2.5% RH accuracy
    • Air Temperature: 32 to 122°F with ±1.1°F accuracy
    • Dew Point: -22 to 122°F with ±1.8°F accuracy
    • Vapor Pressure: 0.0 to 12.0 kPa with ±0.05 kPa accuracy
    • Mixing Ratio: 0 to 560 GPP with ±2 GPP accuracy

Authorised Australian Distributor

Warranty

Video Play

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: FLIR MR176 Categories: , Tags: ,

FLIR MR176 Thermo-hygrometer Moisture Meter with IGM

The FLIR MR176 Imaging Moisture Meter Plus with IGM™ is an all-in-one tool equipped with a built-in thermal camera that can show you exactly where to measure moisture. Featuring Infrared Guided Measurement (IGM) technology, the MR176 helps you quickly scan and target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. Coupled with a field-replaceable temperature and relative humidity sensor, and automatically calculated environmental readings, the MR176 delivers added convenience and ease of use, producing the right measurements — faster.

Features

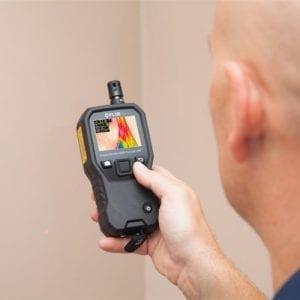

Visually identify hidden moisture with IGM.
Easily investigate moisture issues and troubleshoot quickly

  • An 80 x 60, 4800-pixel Lepton ®  thermal imager powers IGM technology, visually indicating potential moisture areas via the color display
  • Customize thermal images: select which measurements are integrated (moisture, temperature, relative humidity, dew point, vapor pressure, mixing ratio), and choose from one of four color palettes (Iron, Rainbow, Ice, Greyscale); a lock-image setting prevents extreme hot and cold temperatures from interfering with images while scanning for issues
  • Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image

Get precise readings.
Confidently take measurements and analyze readings

  • Field-replaceable temperature/relative humidity sensor can simply be removed from meter and exchanged when needed, so you can continue to work and reduce downtime
  • Progressive Environmental Stability Indicator removes response time error when you move through a site to different measurement locations, informing you when the relative humidity readings have reached a steady state

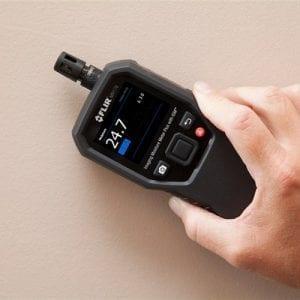

  • Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options

Convenient and easy to operate.
Get more work done in less time

  • Rugged, portable design with intuitive menu system
  • Document readings and images to share via included USB cable
  • Free FLIR Tools PC software quickly generates reports
MR176: Imaging Moisture Meter Specifications
Imaging Detector FLIR Lepton microbolometer
Image Calibration Automatic with manual lock scale option
Thermal Image Resolution (W x H) 4800 pixels (80 × 60)
Spectral Response 8 to 14m
Field of View (W x H) 51° × 38°
Sensitivity <150mK
Detection Limit
(Wet Area Detection @ 10m
49cm 2
Image Update Speed Frequency 9Hz
Thermal Image Palettes Iron, Rainbow, Ice, Greyscale
Thermal Image Minimum Focus Distance 10cm
Moisture Measurement Range Basic Accuracy
Pin Moisture 7% to 30% ±1.5% MC
30% to 100% Reference only
Pin Moisture Groups 9 Material Groups
Pinless Moisture Range 0 to 100 Relative
Pinless Measurement Depth 19mm Max
Measurement Resolution 0.1
Response Time Pinless Mode 100ms
Response Time Pin Mode 750ms
Environmental Measurement Range Basic Accuracy
Relative Humidity 0 to 100% 2.5%RH
Air Temperature 0 to 50°C ±0.6°C
Dew Point -30 to 50°C ±1.0°C
Vapor Pressure 0.0 to 12.0kPa ±0.05kPa
Mixing Ratio 0.0 to 80.0 g/kg 0.25 g/kg
General information
Display Type QVGA (320 x 240 pixel) 2.3” color TFT graphical display
Saved Image File Format BMP with measurement values overlaid
Stored Image Capacity 9999 images
Laser Orientation Single laser pointer to center of thermal image
Continuous Run Time 18 hours max
Typical Usage* 4 work weeks
Battery 3.7V, 3000mAh Li-ion rechargeable via micro USB
Certification Standards EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Agency Approvals CE, FCC Class B
Includes MR01 Replaceable Temperature and Relative Humidity Sensor,
MR02 Standard Pin Probe, Quick Start Guide,
Weight 1 kg
