FLIR TA74 3000A CAT IV Flex Current Probe Accessory, 45cm

Flir-2

The FLIR Universal Flex Current Probe accessories are designed to add capabilities, simplify challenges, and get the best readings with your existing meter. Made with a narrow flexible coil clamp the TA74 let you easily take measurements in tight or awkward spots — a difficult task with a traditional hard jaw clamp meter. The connection is a standard banana plug and the output is a voltage signal, so it’s compatible with most DMMs and clamp meters, regardless of brand.

Authorised Australian Distributor

Video Play

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: FLIR TA74 Category: Tags: ,

FLIR TA74

Universal Flex Current Probe Accessory

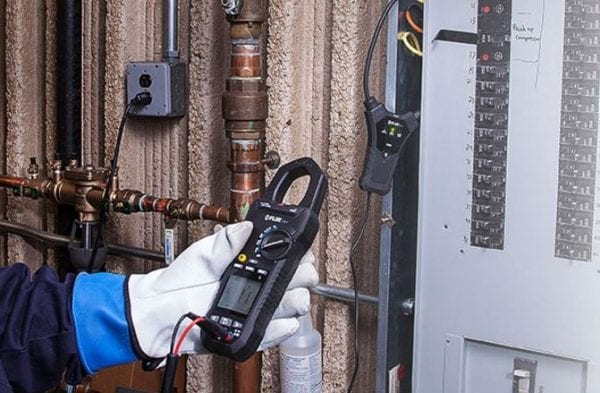

The FLIR TA74 Universal Flex Current Probe accessory is designed to add capabilities, simplify challenges, and get the best readings with your existing meter. Made with a narrow flexible coil clamp and locking mechanism, the TA74 lets you easily take measurements in tight or awkward spots — a difficult task with a traditional hard jaw clamp meter. The connection is a standard banana plug and the output is a voltage signal, so it’s compatible with most DMMs and clamp meters, regardless of brand. The TA74 has a max conductor diameter of 4.7 inches.

Take Accurate Measurements in Tight or Awkward Spots

  • Snake the coil around obstacles with ease, even in deep, crowded cabinets
  • Measure multiple conductors and targets with limited clearance
  • Switchable AC current range – 30A, 300A, 3000A

Empower your Meter

  • Compatible with most DMMs and clamp meters, regardless of brand
  • Standard banana plug connectors fit most meters, and AC voltage output enables wide compatibility
  • Adds 3000A AC current measurements to existing meters
  • AC voltage output for wide compatibility

Easy Inspection and Navigation

  • Bright, dual LED work lights provide built-in illumination for dark cabinets
  • Portable, lightweight, and tangle-free without compromising measurement range
  • Drop tested to 3 meters

Model TA72 TA74
Maximum AC current 3000A
AC current ranges
and resolution
30.00A, 300.0A, 3000A
Basic AC current accuracy
(full scale)
± 3.0% + 5 digits
Measurement rate 1.5 samples per second, nominal
AC current bandwidth 45Hz – 500Hz (sine wave)
Positional error
(distance from optimum)
0.6″ (15mm) ± 2.0%
1.0″ (25mm) ± 2.5%
1.4″ (35mm) ± 3.0%
1.4″ (35mm) ± 1.0%
2.0″ (50mm) ± 1.5%
2.4″ (60mm) ± 2.0%
Meter Data
Minimum requirements for
meter compatibility with TA72
AC voltage function, 4000 count display 1mV remote*
Max conductor diameter 2.4″ (6cm) 4.7″ (12cm)
Flex coil length 10″ (25cm) 18″ (45cm)
Flex coil diameter 0.3″ (7.5mm)
Flex coil tip diameter 0.5″ (13mm)
Cable length 73″ (1.9m)
Worklight Two white LEDs
Power supply (2) 1.5V “AAA”
Drop test 9.8′ (3m)
Agency approvals CE, UL
Safety rating CAT IV 600V, CAT III 1000V
Standards EN61010-1, EN61010-2-032, EN61326-1
Warranty Limited lifetime with registration**
Weight 1 kg
