HT Italia MACROTEST G1-KIT 4-Pole Earth Tester with T2100 Stakeless Clamp

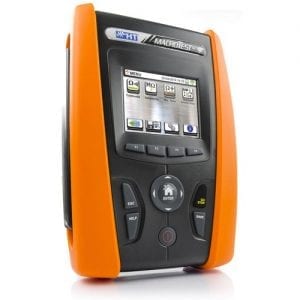

MACROTEST G1 is an innovative multifunction installation tester capable of carrying out safety tests on civil and industrial electric systems in compliance with IEC/EN61557-1. Its resistive TFT color touch-screen display, its icon menu, its help-on-line and its user-friendly development make the instrument extremely intuitive even for unskilled users. Its numberless features grant the user a wide range of applications in the world of measurements.The multifunction installation tester MACROTEST G2 allows saving all measures into an internal memory so transferring the saved data to a PC by means of USB (provided as standard) or built in Wi-Fi interfaces with an iOS and Android smartphones or tablets .The software supplied among standard accessories allows printing testing reports.The multifunction installation tester MACROTESTG1 has as Optional clamp T2100 permits to quickly check the resistance of earth probes without disconnection from earth system.


Symbols (c) Symbols (b) Symbols (a)

logopdf (2) HT_Instruments_MACROTESTG2_Data_Sheet

logopdf (2)T2100 datasheet

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: HT Italia MACROTEST G1-KIT Categories: , Tags: ,
MACROTEST G1 + T2100 Clamp + V504 Hard Case


  • Earth resistance and soil resistivity with 2/3/4 pole method
  • Stackless earth ground resistance (with T2100 optional accessory)
  • Power Analysis, Harmonic analysis up to 25th
  • Continuity of protection conductors with 200mA

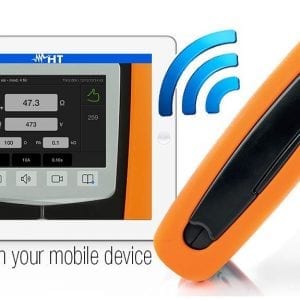

  • Built-in WiFi interface to connect to iOS and Android devices
  • USB interface to connect to the PC
  • Color touch-screen display
  • Help on-line
  • Internal memory and Cloud Storage (trough iOS or Android device)
  • Rechargeable NiMH batteries (external battery charger)

T2100 Earth Ground Clamp Meter with RS-232 Interface

  • Resistance measurement on earth probes by means of ground loop method
  • Direct measurement on earth probes without any cable breaking
  • RS-232 serial interface for connection with MACROTESTG3
  • Calculation of parallel resistance of all earth probes
  • Setting of alarm thresholds on measurements
  • Storage of measurement results
  • Detection of current noise on measurements
  • Data HOLD function
  • Backlight
  • Auto Power OFF

What’s In The Box

MACROTESTG1 Ground Resistance and Bonding Continuity Tester

  • C2033X  3-banana to Shuko plug cable
  • KITGSC5  Kit including 4 cables, 4 alligator clips and 2 test leads
  • KITTERRNE  Soft carrying bag containing 4 cables and 4 earth rods
  • PT400  Stylus
  • BORSA2051  Soft carrying bag
  • TOPVIEW2006  PC software and optical-to-USB connection cable C2006
  • YABAT0003000  Rechargeable NiMH battery 1.2V, AA, 6 pcs
  • Quick user’s guide
  • User’s manual  on CD-ROM
  • Calibration certificate  ISO9000

T2100 Earth Ground Clamp Meter with RS-232 Interface

  • Resistive test loop
  • RS-232 cable
  • Batteries
  • ISO9000 calibration certificate
  • User manual
  • Carrying case

VA 504 Hard Carry Case
