HT ITALIA IDM70 Laser Meter Distance Meter

HT Italia Logo

Professional laser distance meter for measures up to 70m and Bluetooth connection with iOS and Android devices.

The model iDM70 is a professional laser meter designed to measure distances between two points in a simple, fast and efficient way thanks to the integrated laser pointer and small size which make it a completely portable tool for use in every situation and in any application (buildings, electricity sector, DIY, etc…) where it may be necessary to perform a measure of linear length.

Authorised Australian Distributor

WARRANTY 3
If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: HT ITALIA IDM70 Category: Tags: ,

The HT Italia IDM70 also allows you to perform calculations of areas and volumes and the indirect measure of heights 2 points and 3 points by using the trigonometric method and the principle of mathematical theorem of Pythagoras. The tilt angle measurement, a programmable timer and a small tubular spirit level for a perfect alignment of objects in the test are available features.

The management of simple operations with the internal memory (sums and subtractions) and a backlight display complete the features available for the instrument. A dedicated HT LaserMeter APP, free downloadable on both iOS/Android devices, allows to manage the results of measurements performed by the meter (by Bluetooth connection) in way to share information by e-mail and/or social network (Facebook, Twitter, etc).

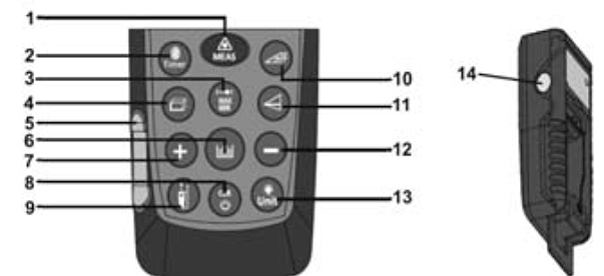

Description of the Controls



iDM Description

Caption Desription
1 ON/MEAS key
2 Timer/Bluetooth key
3 Key for single/continuous distance measurement
4 Area/Volume key
5 Air bubble level
6 Key for saving measurement results
7 + ” key
8 OFF/CLR key
9 Reference setting key
10 Tilt/Dimension key
11 Key for indirect distance measurement
12 ” key
13 Backlight/Measuring unit key
14 ON/MEAS key

HT Italia IDM70 Specifications:

Mechanical Specifications
Sizes (L x W x H) 135 x 53 x 30mm
Weight (included battery) 160g
General specifications
Tilt angle range ±65° (lateral tilt <±10°)
Timer on measurement max 60s
Bluetooth connection 3.0 EDR, max 10m
Laser Finder APP compliance iOS/Android devices
Power supply
Internal supply 2×1.5V batteries alkaline type AA LR06
Battery life > 8000 measurements
Auto Power OFF 180s (meter) ; 30s (laser pointer)
Laser pointer class 2 according to IEC/EN60825-1
Mechanical protection IP54
Display
Features quadruple LCD, 5 dgt with backlight
Environmental Conditions
Working temperature 0 to 40 °C
Storage temperature -10 to 60°C
