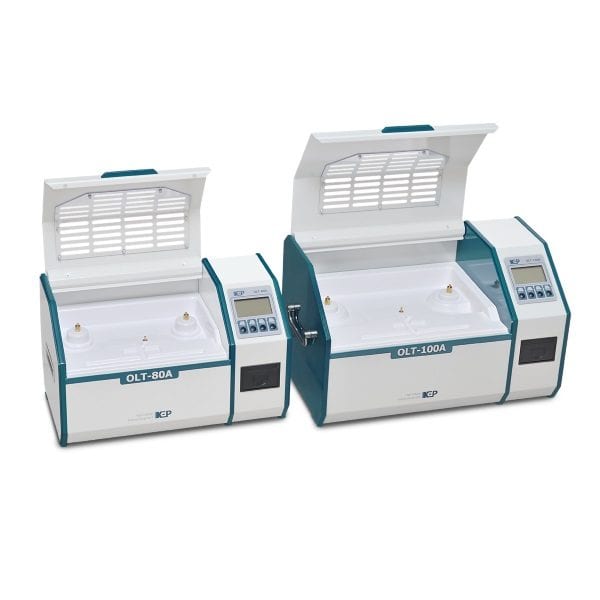

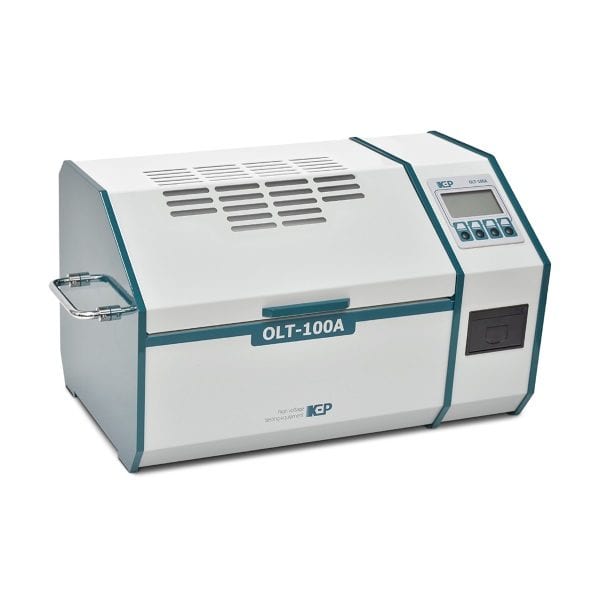

KEP OLT-100A Oil Dielectric Breakdown Tester
The KEP OLT-100A Oil Tester is an 100kV breakdown tester used for testing dielectric liquids. It works automatically according to selected standards which are preloaded into the instrument.
Testing of transformer oil and analysis of obtained data can provide the operator with necessary information about any existing or possible faults. If you make such tests periodical – it even can even show trends – and you don’t have to pull down the equipment from its running condition which in the end saves you time and money.
KEP OLT-100A MAIN FEATURES:
- Compact and lightweight
- Fully automatic operation
- Fully compatible with IEC 60156
- Preloaded testing programs for different standards
- Built-in printer
- PC connectivity
- Internal test data storage
- Precise direct voltage measurement
- True sine high-voltage on electrodes
- Oil temperature measurement
- 2 Year Warranty
The KEP OLT-100A Oil Dielectric Breakdown Tester allows accurate and repeatable results of measured breakdown voltage. Fast high-voltage switch off time makes it possible to carry out test of dielectric liquids, which are easily destroyed under such influences.
The internal design of KEP OLT-100A Oil Dielectric Breakdown Tester combined with a use of automatic high voltage breakers, cutting off supplied voltage if tester’s lid has been opened during the test, provide operator with high level of safety.
The KEP OLT-100A Oil Tester comes fully equipped and are ready for operation immediately after unpacking. It comes supplied with a test vessel (IEC 60156 – basic configuration) with VDE 0370 mushroom-shape electrodes. A gap between electrodes is easily regulated with a use of pass-no pass gauge, which comes in pack.
The KEP OLT-100A Oil Dielectric Breakdown Tester provides a fully automatic test procedure according to selected standard (basically IEC 60156 and GOST 6581 settings are preloaded). It has a built-in printer which is able to print a test report after procedure is done. Test results are saved into non-volatile memory of the KEP OLT-100A Oil Tester. A PC-connectivity makes it easy to collect data from the OLT-100A, save and store them as well as print a fulfilled report. Test voltage is being measured directly on electrodes. This fact combined with a true sine voltage shape (independent from supply voltage shape), increases repeatability and accuracy of measurements.
Test vessel for this KEP OLT-100A Oil Tester is supplied with a magnetic stirrer, which stirs a liquid between measurements.
KEP OLT-100A Oil Dielectric Breakdown Tester Specification:
|Output AC voltage (symmetrical)||100kV rms|
|Measurement uncertainty||3% of reading|
|Output voltage rise rate||2kV/s ± 0.2 – basic (changes according to selected standard)|
|Switch-off time on breakdown||< 5μs|
|Temperature measuring range||5.0 – 50.0 °C|
|Programmed test sequences||IEC 60156 (BS EN 60156, CEI EN 60156, NF EN 60156, UNE EN 60156, SABS EN 60156, PA SEV EN 60156) GOST 6581|
|Electrodes||“mushroom” type IEC 60156|
|Test vessel||IEC 60156, 400 ml, 1.0 kg|
|Go/No-Go gauge width||2.45 / 2.55 mm|
|Display resolution||128 × 64 dot matrix, monochrome|
|Interface languages||English, Russian, Turkish|
|Printer||thermal line, 8 dots/mm, 384 dots/line|
|Memory for results, cells||512|
|PC connectivity||USB B-type|
|Input voltage, V||230 ± 10% (basic),
110/120 – on request
|Line frequency||50/ 60Hz ± 1|
|Power consumption O||140VA|
|OLT-100 dimensions (W × H × D),||530 × 315 × 320 mm|
|Net weight||30 kg|
|OLT oil tester||1|
|Test vessel* IEC 60156 with electrodes and cover||1|
|Lifting stick for magnetic stirrer||1|
|USB cable (A-B type)||1|
|Power cord (C-type plug.)||1|
|Software on USB flash-drive||1|
|Paper roll (inside the printer)||1|
|C-100 calibration kit||Optional|
