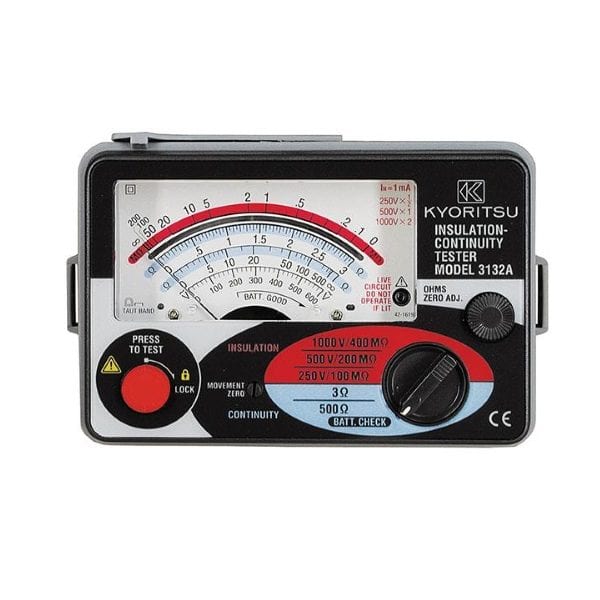

KYORITSU 3132A Compact Insulation & Continuity Tester


  • Kyoritsu 3132A – 1000V Analogue Insulation-Continuity Tester
  • A highly compact and easy to use insulation and continuity tester.
  • Rugged Taut Band meter movement
  • Designed to strict CAT III 600V safety standards
  • IP54 RATED. The Kyoritsu 3132A has 3 insulation test ranges.
  • A 3 ohm continuity range and a 500 ohm resistance range.


If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: KYORITSU 3132A Category: Tags: ,

Kyoritsu 3132A is an analogue tester with five ranges for insulation resistance measurement and continuity testing (resistance tests) of low voltage installations. Designed to safety standards: IEC 61557-1 (General requirements for measuring equipment for low voltage distribution systems) IEC 61557-2 (Equipment for insulation resistance measurement for low voltage distribution systems) IEC 61557-4 (Equipment for resistance tests for low voltage distribution systems) Dust and drip proof construction to IP54

  • The Kyoritsu 3132A has always been a popular choice because of its price and simplicity for insulation testing.
  • Test Voltage: 250V / 500V / 1000V
  • Measuring Range: 100MΩ, 200MΩ, 400MΩ
  • Voltage Measuring Range – 0~600V AC
  • Easy to read scale means no confusing digital readings.
  • Zero out your trailing lead resistance so you don’t need to subtract the resistance of your trailing earth lead every time you test.
  • •1mA rated test current at the maximum resistance.
  • 200mA short circuit current on continuity testing.
  • Automatic discharge of circuit capacitance. (any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp.
  • Small and lightweight. Shock resistant new case material.
  • AC voltmeter with linear, easy-to-read scale.
  • CAT III 600V
  • Runs on 6 x AA batteries
