REED R2050 Thermal Imaging Camera (80 x 80 Pixels)

reed logo red

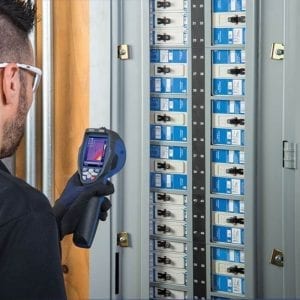

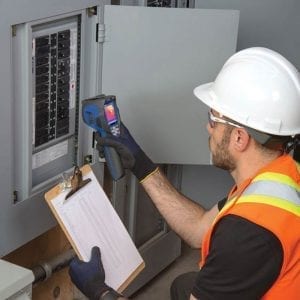

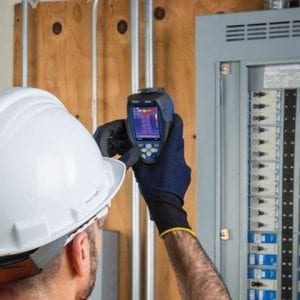

The Reed R2050 features a 80 x 80 (6,400 pixels) infrared detector that can detect temperatures between -20 and 350°C (-4 to 662°F). Thermal and visual images are displayed on a vivid 2.8″ LCD display and are saved on the included Micro SD card. In addition, the R2050 comes with a 5.0 megapixel digital camera, 32X digital zoom and the ability to record video with audio.

Features of the REED R2050 Thermal Imaging Camera.

  • Infrared resolution of 80 x 80 pixels (6400 pixels).
  • High thermal sensitivity (NETD) of 0.1°C at 30°C (86°F) / 100mK.
  • 2.8-inch color 240 x 320 pixel LCD display.
  • Built-in laser and white LED flashlight.
  • Built-in visible light 5 Megapixel digital camera.
  • 32X continuous digital zoom.
  • Infrared and visual images, picture-in-picture, as well as visual image with infrared overlay.
  • Automatic Hot/Cold spot indicator.
  • Automatic Level/Span function.
  • Automatic power Off.
  • Choice of four color palettes including custom.
  • Video recording with voice annotations.
  • Micro SD memory card extension possible.
  • < Class 2 Laser.
  • Set-Up Commands: Local adaptation of units, language, date and time formats, information of camera.
  • Multinational languages.
  • Includes: R2050 Thermal Imager, Lens, Li-ion Battery, Adaptor, Micro SD, USB Cable, HDMI Cable, Earphone, Wrist Strap, PC Software and Installation CD, Soft Carrying Case.

PDF   REED R2050 Instruction Manual

Authorised Australian Distributor

1 Year Warranty

VIDEO Play

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: REED R2050 Category: Tags: ,

REED R2050 Lens

The Thermal Imager has a lens. FOV is the largest area that your imager can see at a set distance. This table lists the horizontal FOV, vertical FOV and IFOV for lens. Focal Length: 9mm Horizontal FOV: 17° IFOV: 3.78mrad Vertical FOV: 17° IFOV (Instantaneous Field of View) is the smallest detail within the FOV that can be detected or seen at a set distance, the unit is rad. The formula is: IFOV = ( Pixel Size )/ ( Lens focal length ); D:S theoretical ( = 1/ IFOV theoretical) is the calculated spot size based on the pixel size of the Thermal Imager detector array and lens focal length. Example: If Thermal Imager uses 9mm lens, because the pixel size of detector is 34um. Horizontal FOV is 17°, Vertical FOV is 17°, the IFOV is 34um/9mm = 3.78mrad;

REED R2050 Imaging and Optical Data
IR Resolution 80 x 80 (6400) pixels
Thermal Sensitivity / NETD 0.1°C at 30°C (86°F) / 100mK
Field of View / Min Focus Distance 17° x 17°  /0.5m
Spatial Resolution (IFOV) 3.78mrad
Image Frequency 50Hz
Focus Mode Manual
Zoom 1 – 32x continuous, digital zoom
Focal Length 9mm
Focal Plane Array/Spectral Range Uncooled microbolometer/ 8 – 14µm
Measurement
Temperature Range -20°C to 150°C (-4°F to 302°F)
0°C to 350°C (32°F to 662°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Spot Center Spot
Automatic Hot/Cold Detection Auto hot or cold markers
Emissivity Correction Variable from 0.01 to 1.0
Measurement Corrections Emissivity, Reflected temperature
Image Storage and Communications
Built-in Digital Camera 5 Megapixels
Built-in Digital Lens Data FOV 59°
Display 2.8-inch LCD, 240 x 320 pixels
Image Modes IR Image, Visual Image, Picture-in-Picture
Color Palettes IRON, Rainbow, Grey, Grey Inverted
Image Storage Format Standard JPEG, including measurement data, on memory card > 2000 pictures
Image Storage Mode IR/Visual images, simultaneous storage of IR and visual images
Video Storage
Storage Media 8GB Micro SD Card
Video Storage Format Standard MPEG-4 encode, 1200 x 960 at 30fps, on memory card > 60 minutes
Video Storage Mode IR/Visual  images, simultaneous storage of IR and visual images
Data Communication Interfaces
Interfaces USB-mini, Audio, HDMI
USB Data transform between camera and PC, Live video between camera and PC
Video Output HDMI
Environmental
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity (Operating/Storage) 10% to 90%
Drop Tested 2 meters
Bump/Vibration 25g (IEC 60068-2-29) / 2g (IEC 60068-2-6)
Power Supply
Power Supply Li-ion Battery, 4-hours operating time
Battery Input Voltage 5 Volts DC
Charging System In camera (AC adapter)
Power Management Automatic shutdown
General Specifications
Dimensions 224mm x 77mm x 96mm
Weight 500g with battery
