Reed ST-610B Thermocouple Thermometer and Probe Kit

reed logo red

Reed ST-610B is essential where the temperature measurements need to be done with good accuracy and fast response time. Depending on applications, the meter comes with two resolutions: high resolution (0.1°C or 0.1°F) and low resolution (1°C or 1°F). Reed ST-610B measures temperature using a different kind of type K probes and proved to be easy to use Thermocouple Thermometer for checking the temperature in several spots.

REED ST-610B Features

  • Compact single input thermocouple thermometer designed for field use
  • Accuracy to 0.5%
  • Display maximum reading plus Data Hold
  • Large LCD display with backlight
  • User selectable °C or °F or Kelvin
  • User selectable 0.1°C or 1°C (0.1°F or 1°F) resolution
  • Accepts K-type thermocouples
  • Includes 9V battery and holster

Authorised Australian Distributor

1 Year Warranty

If you would like more information regarding this product, simply email us here.
  • This field is for validation purposes and should be left unchanged.
SKU: Reed ST-610B Category: Tags: ,

The Reed ST-610B Digital Thermocouple Thermometer comes with a large measurement range, from -50°C to 1300°C .This compact, single input thermocouple thermometer is designed for field use. It’s smaller, lighter (210g), displays maximum reading with a Data Hold function.

How to use Reed Digital Type K Thermometer (-50/1300C) (ST-610B)

How to select the Temperature Scale
Reed ST-610B will turn on with the temperature scales’s last settings. To change the scale, simply press the °C, °F or K button.

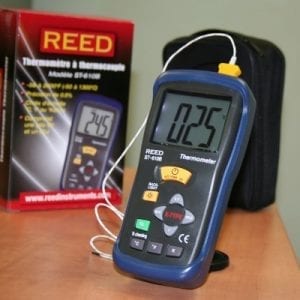

Selecting the Display ResolutionReed_ST-610B_picture7
For this digital thermometer two choices of resolution are available: High resolution (0.1°C or 0.1°F) and Low resolution (1°C or 1°F)

Tc (Temperature Compensator) Checking Mode
Press and hold the Tc button to enter the “Temperature Compensator-Checking” mode. The thermometer will display the inside temperature.

Hold and Max Mode
To activate “Data Hold” mode, press the HOLD button since the “HOLD” indicator will be displayed. Now the Reed ST-610B thermometer will “freeze” the present readings and stops all further measurements. Pressing the HOLD button again cancels “HOLD” mode, causing the thermometer to resume taking measurements.
To use the “Max Mode” just press the MAX button then the instrument will record and update the maximum values. During this measurements the “MAX” indicator appears on the display. Press the MAX button again to exit the “MAX” recording mode. In the “MAX” mode, press the HOLD button to stop the recording, press HOLD again to resume recording.

Optional Accessories:
Model LS-109 Surface Probe: Ribbon-style surface probe
Model LS-139 Surface Probe: Spring loaded probe is ideal .
for all high temperature applications
Model LS-104 Right Angle Surface Probe: Unique right angle .
design allows temperature of hard to reach areas to be taken
Model LS-103 Air/Gas Probe: Perforated shield permits fast .
response while providing element protection
Model LS-134A Needle Tip Probe: Medium gauge hypodermic .
needle tip, used to measure softer foodstuffs, rubber and solids
Model LS-107 General Purpose Probe: Used to measure both air .
and liquids, but is recommended for immersion applications

REED ST-610B Specifications

    ELECTRICAL

  • Temperature Scale: Celsius (C°), Fahrenheit (°F) or Kelvin (K)
  • Measurement Range: -50°C to 1300°C, -58°F to 2000°F, 223K to 2000K
  • Resolution: 1°C or 1°F, 0.1°C or 0.1°F,1 K
  • Accuracy is specified for operating temperatures.over the range of 18°C to 28°C (64°F to 82°F),
    for 1 year, not including thermocouple error
    ±2°C -50°C to 0°C
    ±4°F -58°F to 32°F
    ±5K 223K to 273K
    ±(0.5% rdg+1°C) 0°C to 1000°C
    ±(0.8% rdg+1°C) 1000°C to 1300°C
    ±(0.5% rdg+2°F) 32°F to 2000°F
    ±(1.0% rdg+2K) 273K to 2000K
  • Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)
  • Input protection: 60V DC or 24V RMS AC maximum input voltage on any combination of input pins;
  • Reading Rate: 2.5 times per second;
  • Input Connector: Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm, center to center)
    ENVIRONMENTAL
  • Ambient Operating Range: 0°C to 50°C (32°F to 122°F);
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F);
  • Relative Humidity: 0% to 80% (0°C to 35°C) (32°F to 95°F).
    0% to 70% (35°C to 50°C) (95°F to 122°F);
    GENERAL
  • Display: 3 ½ digit liquid crystal display (LCD) with a maximum reading of 1999;
  • Battery: Standard 9V battery (NEDA 1604, IEC 6F22);
  • Dimensions: 162mm (H) × 76mm (W) × 38.5mm (D);
  • Weight: 210g
