FLIR VP52-2 Non-Contact AC Voltage Detector with 3 Alarm Indication

Mike — Mon, 01 Jul 2024 07:32:14 +0000

Use the FLIR VP52-2 Non-Contact AC Voltage Detector to reliably check if an AC circuit is live before beginning work; detect voltage on exposed conducting parts or through insulation; identify live wires within electrical panels, switches, and outlets; or trace live wires and map circuits.

With an ergonomic and drop-tested design, the FLIR VP52-2 is the right choice for professionals performing field troubleshooting and verification of electrical installations within residential, commercial, and industrial buildings

The FLIR VP52-2 Non-Contact AC Voltage Detector detects the presence of AC voltage at electrical outlets, junction strips, electrical circuits, and other devices without having to contact the device physically.

The VP52-2 has a minimum excitation voltage of 190 V AC (this is its normal, or low sensitivity, mode) and a high sensitivity mode allowing detection down to 24 V AC. Tactile vibration, audible beeper, and visual cues alert the user when AC voltage is present.

FLIR VP52-2 Features:

Beeper sound
Vibration feedback alarms
Optimized High/Low sensitivity ranges
Multi-color LED alarm indicators
Bright flashlight
Dual LED illuminator at probe tip
ON/OFF button with auto power off (APO)
CAT IV 1000 V safety rated
Low battery indication (status LED flashing amber)
Robust pocket clip
Limited Three-Year Warranty
3 metre drop-tested

Description

1. AC Voltage sensor
2. Tip lighting
3. Alarm indicator
4. Status indicator
5. Power button: ON (short press); OFF (long press); Low/high sensitivity toggle (short press with meter ON)
6. Pocket clip
7. Flashlight ON/OFF button (long press)
8. Battery compartment access cap
9. Flashlight

FLIR VP52-2 Specifications

Measurement
AC Voltage Range (default, solid green light)	190 to 1000 V AC
High-Sensitivity Mode (solid amber light)	24 to 1000 V AC
Frequency Range	45 to 65 Hz
Meter Data
Sound Alert	Yes
Flashing LED Alert	Yes
Vibration Alert	Yes
Flashlight	Yes
Tip Light	Yes
Category Rating	CAT IV 1000 V
General Information
Warranty	Limited 3-year
Certifications	CE, RCM
Power System
Power Requirements	2 × AAA alkaline batteries
Battery Life	~5 hours continuous (flashlight off)
Low Battery Voltage	Status LED flashes amber colour
Auto Power Off	After 3 minutes of inactivity
Environmental Data
Drop Test	3 metre
Operating Ambient Temperatures	-10 to 50°C
Storage Temperature	-20 to 60°C
Physical Data
Weight	59 g including batteries
Dimensions (L × W × H)	158.5 × 26 × 29 mm

The post FLIR VP52-2 Non-Contact AC Voltage Detector with 3 Alarm Indication appeared first on Obiat Electronics.

FLIR MR265 Moisture Meter and Thermal Imager with MSX

Mike — Wed, 14 Jul 2021 23:56:41 +0000

The FLIR MR265 is a professional pin and pinless moisture meter with thermal imaging designed to show you exactly where to investigate issues related to moisture, air leaks, and insulation voids.

Featuring IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging enhancement) technology, the MR265 helps you quickly scan and target problem areas, visually guiding you to the spot where you can confidently take measurements, analyze readings, and ensure that problems are fixed.

Using FLIR Thermal Studio™, you can then create and share professional reports that include findings and proof of repairs – giving your clients peace of mind that mold, rot, or moisture challenges have been resolved.

GET TO THE PROBLEM FASTER

Pinpoint problems at the source using the 160 × 120 (19,200 pixels) built-in thermal camera, 2 MP visual camera, bright worklight, laser, and MSX, which embosses visual details onto thermal images
WORK SMARTER

Assess moisture with pinless or pin measurements, and choose from a variety of optional, compatible probe accessories for flexibility and convenience on the job
IMPROVE COMMUNICATION WITH CUSTOMERS

Document both thermal and visual images before and after repairs, and create professional reports using FLIR Thermal Studio to better communicate problems and repairs

Pin and Pinless Moisture Measurement

The MR265 also offers flexibility in identifying moisture issues—providing both pin and pinless capabilities.

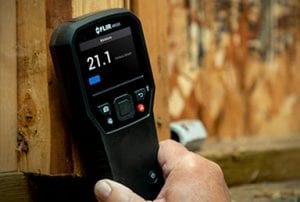

The pinless option can provide qualitative measurements through an integrated sensor for situations where a more invasive method either isn’t possible or would cause unwanted damage.

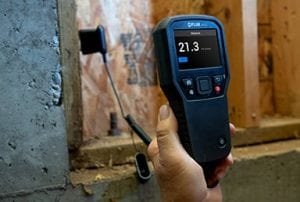

Conversely, pin measurements produce quantifiable measurements using a resistive sensor that can pierce cavities and other suspected moisture spots within walls, ceilings, and floors.

When used with the thermal imager, operators can scan an entire interior wall to narrow down the moisture location, use the integrated sensor to pinpoint the source of water intrusion, and then measure the exact amount of moisture without requiring unnecessary demolition.

Functionality can be further expanded through six compatible accessory probes and sensors available for the MR265, such as the FLIR MR08 hammer and wall cavity probe combo and the FLIR MR05 impact pin moisture probe.

Thermal Imaging
Thermal Image Resolution	160 x 120 (19,200 pixels)
Spectral Response	8 to 14 μm
Field of View	57 x 44°
Sensitivity	<150 mK
Object Temperature Range	32 to 212°F (0 to 100°C)
Emissivity Correction	3 pre-set and 1 custom emissivity setting
Image Update Speed Frequency	9 Hz
Image Modes and Displays
Thermal Image Palettes	Iron, rainbow, arctic, white-hot, black-hot
MSX®	Adds visual details to full resolution thermal image
Image Modes	Modes: Thermal, visual, MSX Gallery: Yes
Internal Memory	8 GB
Display Type	QVGA (320 x 240 pixels) 2.8″ color TFT graphical display
Moisture Measurements
Pin Moisture	Range: 7 to 100% Accuracy: ±1.5%, 7 to 30%, reference only: 30 to 100% Groups: 11 material groups
Pinless Moisture	Range and accuracy: 0 to 100; relative Depth: Maximum of 0.75″ (19 mm)
Measurement Resolution	0.1
Response Time	Pinless mode: 100 ms Pin mode: 750 ms
General Specifications
Saved Image File Format	Radiometric jpg
Stored Image Capacity	15,000 Images
Digital Camera	2 MP Field of View (FOV): 83° (70.5° HFOV x 56° VFOV)
Language Options	22
Laser Type	Visible class 2, single laser pointer to center of thermal image
Continuous Run Time	10 hours maximum
Typical Usage	4 work weeks
Auto Power Off	Programmable: off, 5, 10, 20 and 30 minutes
Battery	Rechargeable 3.7 V nominal, 5400 mAh LiPo
Certification Standards	EN 61326 (EMC), EN 60825-1 class 2 (laser), IEC61010-1
Agency Approvals	CE, RCM, FCC Part 15B, UKCA
Temperature	Operating: 32 to 113°F (0 to 45°C) Storage: -4 to 140°F (-20 to 60°C)
Humidity	Operating: 10 to 90% Storage: 90% relative humidity (no condensation)
Drop Test	6.6’ (2 m)
Dimensions	6.97 x 3.5 x 1.43″ (17.7 x 8.9 x 3.6 cm)
Weight	0.7 lbs (392 g)

The post FLIR MR265 Moisture Meter and Thermal Imager with MSX appeared first on Obiat Electronics.

FLIR C3-X Compact Thermal Imaging Camera

Mike — Mon, 22 Mar 2021 05:42:30 +0000

The FLIR C3-X compact thermal imaging camera is an affordable, professional inspection tool for building, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications.

Featuring a thermal camera, visual inspection camera, and LED flashlight, the powerful FLIR C3-X makes it easy to identify hidden problems.

The FLIR C3-X has built-in FLIR Ignite™ cloud connectivity that allows direct data transfer, storage, and backup, so images are always available on all your devices.

The 3.5-inch integrated touchscreen is simple to use, so you can quickly inspect, document repairs, and share evidence with customers. With the FLIR C3-X Compact Thermal Imaging Camera in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.

FLIR C3-X Specifications

OVERVIEW
Camera size (L x W x H)	138 × 84 × 24 mm
Detector Type	Focal plane array, uncooled microbolometer
Display Technology	IPS
Housing material	PC and ABS, partially covered with TPE; aluminum
Packaging Size	160 × 118 × 93 mm
Screen Rotation	Yes
Size (L x W x H)	138 × 84 × 24 mm
Text	Soft keyboard on touchscreen
Touchscreen	Capacitive touch

CONNECTIONS & COMMUNICATIONS
Bluetooth	PAN
Image Upload	Directly upload images to FLIR Ignite cloud library and services
Storage Media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB	USB 2.0, Type-C connector
WiFi	802.11 a/ac/b/g/n (2.4 and 5 GHz)

ENVIRONMENTAL
Drop test	2 metre
EMC	EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B
Encapsulation	Camera housing and lens: IP54 rated (IEC 60529)
Environmental Safety	REACH Regulation EC 1907/2006; RoHS2 Directive 2011/65/EC; WEEE Directive 2012/19/EC; Proposition 65
Humidity (Operating and Storage)	IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C / 2 cycles
Magnetic fields	EN 61000-4-8 level 5
Operating Temperature Range	-10 to 50°C
Radio Spectrum	ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2
Relative Humidity	95% relative humidity 25 to 40°C non-condensing
Safety	EN 62368-1
Shock	25 g (IEC 60068-2-27)
Storage Temperature Range	-40 to 70°C
Tripod Mounting	UNC ¼”-20 (built-in)
Vibration	2 g (IEC 60068-2-6)

IMAGING & OPTICAL
Aspect ratio	4:03
Auto orientation	Yes
Camera software update	Automatic over Wi-Fi, USB via computer
Colour	Black
Colour Palettes	Iron, Gray, Rainbow, Rainbow HC
Detector Pitch	12 µm
Digital Camera	5 MP resolution
Digital Camera Focus	Fixed
Digital Camera FOV	71.5° × 56° (84° diagonal)
Digital Zoom	No
Display resolution	640 × 480 pixels
Field of view (FOV)	53.6°
f-number	1.1
Focus	Focus free
Gallery	Thumbnails and custom folder structure
Image Adjustment	Automatic level and span, Manual level and span
Image Frequency	8.7 Hz
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
IR Resolution	128 × 96 pixels
Minimum Focus Distance	Thermal: 0.1 m, MSX: 0.3 m
Thermal: 0.1 m, MSX: 0.3 m
Spatial resolution (IFOV)	7.9 mrad/pixel
Spectral Range	8 to 14 µm
Thermal Sensitivity/NETD	<70 mK
Video Lamp	Yes

MEASUREMENT & ANALYSIS
Accuracy	0 to 100°C : ±3°C (±5.5°F); 100 to 300°C : ±3% [ambient temp. 15 to 35°C and object temp. above 0°C
Languages	Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Measurement Functions	Spot, Box with max./min.
Measurements correction	Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range	-20 to 300°C
Set-up Commands	Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low)

OTHER
Battery regulations	UL 1642; EN 62133 ed 2

PHYSICAL FEATURES
Screen Size	3.5 in
Weight [including battery]	0.19 kg

POWER
Battery capacity	1800 mAh
Battery charge life	>500 cycles
Battery Charging	BC Title 20; 10 CFR Section 430.23 (aa)
Battery operating time	4 hours
Battery Type	Rechargeable built-in Lithium ion battery
Battery voltage	3.7 V
Battery weight	40 g
Charging system	USB-C (1 A)
Charging Temperature	35°C
Charging Time	2 hours
External Power Operation	5 V, USB-C
Power Management	Adjustable stand-by and automatic shut-down

SHIPPING INFORMATION
Packaging Weight	0.52 kg

STORAGE MEDIA
Image File Format	Standard JPEG, 14-bit measurement data included
Image Storage	>5000 images

The post FLIR C3-X Compact Thermal Imaging Camera appeared first on Obiat Electronics.

FLIR C5 Compact Thermal Camera with Cloud Connectivity

Mike — Wed, 03 Jun 2020 11:57:07 +0000

FLIR C5 Compact Thermal Camera with Cloud Connectivity

The FLIR C5 is the first FLIR Cx-Series thermal camera to offer the FLIR Ignite cloud-based solution. When connected to Wi-Fi, professionals can directly upload, store, and back up images and videos to FLIR Ignite.

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Click image to enlarge

Using the FLIR C5 professionals can also manage and share the data via email from any mobile device or desktop computer. With all images and videos in one place, sharing data with team members and creating reports for customers is convenient and simple.

FLIR Ignite Cloud Solution

Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution.

Directly upload, organize, and share images from your Wi-Fi connected FLIR C5. Keep your data safe in one place and easily accessible from any device.

FLIR C5 Specifications

Overview
IR sensor	160 × 120 (19,200 pixels)
Thermal sensitivity/NETD	<70 mK
Field of view (FOV)	54° × 42°
Minimum focus distance	Thermal: 0.1 m MSX^®: 0.3 m
Image frequency	8.7 Hz
Focus	Focus free
Spectral range	8–14 µm
Screen size	3.5 in
Visual camera	5 MP
Digital camera focus	Fixed
Image Presentation
Image adjustment	• Automatic level and span • Manual level and span • 1-Touch level and span
Image modes	• Infrared image • Visual image • MSX (Embossed visual details on thermal image) • Picture-in-picture (IR area on visual image)
Gallery	Thumbnails and custom folder structure
Color palettes	• Iron • Gray • Rainbow • Arctic • Lava • Rainbow HC
Screen rotation	Yes
Touchscreen	Capacitive touch
Measurement & Analysis
Object temperature range	-20 to 400°C
Accuracy	At ambient temp. 15 to 35°C and object temp. above 0°C (32°F) 0 to 100°C, ±3°C 100 to 400°C, ±3%
Measurement functions	• Spot • Box with max./min.
Measurement correction	• Emissivity; matt/semi-matt/semi-gloss + custom value • Reflected apparent temperature • Atmospheric compensation
Image Storage & Streaming
Storage media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Image storage capacity	>5000 images
Image file format	Standard JPEG, 14-bit measurement data included
Communication & Connectivity
Wi-Fi^®	802.11 a/ac/b/g/n (2.4 and 5 GHz)
USB	USB 2.0, Type-C connector
Bluetooth^®	PAN
Image upload	Directly upload images to FLIR Ignite cloud library and services
Additional Information
Battery type	Rechargeable built-in Lithium ion battery
Battery operating time	4 hours
Charging system	USB-C (1 A)
Charging time	2 hours
External power operation	5 V, USB-C
Operating temperature range	-10 to 50°C
Storage temperature range	-40 to 70°C
Encapsulation	Camera housing and lens: IP54 (IEC 60529)
Drop test	Designed for 2 m
Weight (including battery)	0.19 kg (0.42 lb)
Size (L × W × H)	138 × 84 × 24 mm
Tripod mounting (built-in)	UNC ¼”-20

The post FLIR C5 Compact Thermal Camera with Cloud Connectivity appeared first on Obiat Electronics.

FLIR MR277 Building Inspection System with Moisture Hygrometer

Mike — Mon, 01 Jun 2020 01:10:17 +0000

FLIR MR277 Building Inspection System with Moisture Hygrometer

The FLIR MR277 combines the advantages of a high-resolution infrared imaging sensor, FLIR MSX® image technology and a laser pointer, in a all-in-one building inspection system that helps you quickly locate, clearly identify, and easily document critical moisture and building envelope issues.

Designed for restoration, remediation, and building management professionals, the enhanced FLIR MR277 includes features needed to identify, diagnose, fix, and document moisture and building envelope problems. The FLIR Lepton^® thermal imaging sensor powers IGM, visually guiding users straight to the source of building-related issues. Once a problem is located, the built-in pinless sensor enables quick, non-invasive moisture detection. Inspectors can then streamline diagnosis and documentation by using the built-in Bluetooth^® to connect via METERLiNK^® to mobile devices running the FLIR Tools^® mobile app. This allows users to upload measurements and images from the job site to easily complete and share full reports with their customers.

FLIR MR277 KEY FEATURES

• Scan large areas for moisture, air leaks, and more with the 160 × 120 thermal camera
• Easily identify both the context and the issue; MSX embosses physical details on thermal images for clear interpretation
• Pinpoint the exact location of problems with the integrated laser
• Scan for moisture with the integrated non-invasive pinless sensor
• Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
• Simplify documenting issues with the integrated digital camera
• Create a single file documenting thermal, visual, MSX, hygrometer readings, and laser location
• Download images and data via USB cable or upload via Bluetooth® to the FLIR Tools® App

The MR277 features a vibrant display screen that is 50 percent larger than previous FLIR moisture meter models, making it easier to identify problem areas visually and allowing users to view multiple parameters simultaneously, including humidity levels, dew point, and vapor pressure.

A dual-camera system powers FLIR MSX, which adds visual details such as edges, writing, and patterns to full thermal images. The MR277 can display and record MSX, thermal, and visual images, with storage for up to 15,000 images in the internal memory.

The MR277 includes an MR02 removeable pin probe in addition to the built-in pinless sensor to allow users to verify the presence of moisture and take accurate, pin-based measurements with a single tool.

The MR13 moisture hygrometer is also included; this humidity and temperature sensor measures relative humidity and is field-replaceable, thereby minimizing downtime to help keep professionals on-site to quickly complete the job.

FLIR MR277 Specifications

Thermal imaging
Thermal image resolution	160 × 120 (19,200 pixels)
Spectral response	8 µm to 14 µm
Field of view (W × H)	55° × 43°
Sensitivity	<70 mK
Object temperature range	0°C to 100°C (32°F to 212°F)
Image update speed frequency	9 Hz
Image modes and displays
Thermal image palettes	Iron, Rainbow, Arctic, White-hot, Black-hot
MSX^®	Adds visual details to full resolution thermal image
Image modes	Thermal, visual, MSX^®
Internal memory	8 GB
Image gallery	Yes
Display type	QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display
Moisture measurements
Pin moisture range	7% to 100%
Pin moisture accuracy	±1.5%, 7 to 30% Reference only: 30 to 100%
Pin moisture groups	11 material groups
Pinless moisture range and accuracy	0 to 100; relative
Pinless measurement depth	Max of 19 mm (0.75 in)
Measurement resolution	0.1
Response time pinless mode	100 ms
Response time pin mode	750 ms
Environmental measurements
Relative humidity range	0% to 100% RH
Relative humidity basic accuracy	±2.5%
Relative humidity detailed accuracy	±4.7% (0% to 10% RH), ±2.5% (10% to 90% RH), ±4.7% (90% to 100% RH)
Air temperature range	0°C to 50°C (32°F to 122°F)
Air temperature accuracy	±0.6°C (±1.1°F)
Dew point	-30°C to 50°C (-22°F to 122°F)
Dew point basic accuracy	±1.0°C (±1.8°F)
Vapor pressure	0 to 12.0 kPa
Vapor pressure basic accuracy	±0.05 kPa
Mixing ratio range	0 to 80.0 g/kg (0 to 560 GPP)
Mixing ratio basic accuracy	0.25 g/kg (±2 GPP)
General information
Saved image file format	Radiometric jpeg
Stored image capacity	15,000 Images
Digital camera	2 MP
Digital camera field of view (FOV)	83° (70.5° HFOV × 56° VFOV)
Language options	22
Laser type	Visible class 2, single laser pointer to center of thermal image
Power system
Continuous run time	16 hours maximum
Typical usage	4 work weeks
Auto power off	Programmable: off, 1, 5, or 20 minutes
Battery	Rechargeable 4.2 V, 5400 mAh LiPo
Certifications
Certification standards	EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1
Agency approvals	CE, FCC Class B, RCM
Environmental and physical data
Operating temperature	-20°C to 60°C (-4°F to 140°F)
Storage temperature	-20°C to 45°C (-4°F to 113°F)
Operating humidity	5% to 95%
Storage humidity	90% relative humidity (no condensation)
Drop test	2 m (6.6 ft)
Weight:	406 g (14.3 oz)
Size (L × W × H)	16 × 8.5 × 4.4 cm
Shipping information
Packaging contents	FLIR MR277, FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Moisture Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

The post FLIR MR277 Building Inspection System with Moisture Hygrometer appeared first on Obiat Electronics.

FLIR TG267 Infrared Thermal Camera 160 × 120 pixels

Mike — Thu, 24 Oct 2019 00:36:11 +0000

The FLIR TG267 infrared thermal camera takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting.

Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved.

The versatile and rugged FLIR TG267 infrared thermal camera enables professionals to inspect equipment and identify problems from a safe distance by visualizing the hot and cold spots that can indicate larger issues. The FLIR TG267 features a multipoint laser pointer to clearly indicate the area measured, as well as a bright LED flashlight for working in dark, difficult-to-reach spaces.

Bluetooth Low Energy (BLE) technology allows users to easily upload images and data to a mobile device for sharing and report-generation. The FLIR TG267 stores up to 50,000 images that users can play back on the 2.4-inch color display, which is more vibrant and 80-percent larger than earlier models.

IDENTIFY PROBLEMS QUICKLY

Outfit your toolbox with this combination non-contact
temperature measurement & thermal imaging camera

• Experience the difference you can make with a true 160 × 120 IR pixel imager (19,200 pixels)
• Measure a wide range of temperatures: -25°C to 380°C (-13°F to 716°F)
• Add contact-measurement readings with the included Type-K thermocouple (up to 260°C/500°F)
• Identify the exact area that you’re measuring using the bullseye laser pointer

PRODUCE CRISP THERMAL IMAGES

See the detail needed to troubleshoot fault & gauge their severity

• Diagnose problems faster with FLIR-patented MSX image enhancement
• Display and capture thermal or visual images with temperature readings
• Compare before-and-after stored images with FLIR Tools® software to demonstrate the problem and your fix
• View thermal images in your preferred colour palette on the bright 2.4-inch colour display

WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS

Take the TG267 anywhere thanks to its portable
design & protective IP54 enclosure

• Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
• Peer into the darkness and hard-to-reach areas with the bright LED flashlight
• Upload measurement and images in the field via a METERLiNK® connection to the FLIR Tools mobile app
• Rely on the security of the world-class FLIR 2-10 warranty

FLIR TG267 Thermal Camera Specifications:

Imaging and optical data
IR resolution	160 × 120 pixels
Digital image enhancement	Yes
Thermal sensitivity/NETD	<70 mK
Field of view (FOV)	57° × 44°
Minimum focus distance	0.3 m (0.98 ft)
Distance to spot ratio	24:1
Image frequency	8.7 Hz
Focus	Fixed
Focal plane array/spectral range	Uncooled microbolometer/7.5–14 µm
Detector pitch	12 μm
Image presentation
Display resolution	320 × 240 pixels
Screen size	2.4 in. portrait
Colour palettes	Iron , Rainbow, White hot, Black hot, Arctic, Lava
Image adjustment	Automatic
Image modes	MSX^®(Multi Spectral Dynamic Imaging) Visual with temperature reading
Gallery	Yes
Measurement and analysis
Object temperature range	-25°C to 380°C (-13°F to 716°F)
Measurement accuracy	-25°C to 50°C (-13°F to 122°F): up to ±3°C (±7°F) 50 to 100°C (122 to 212°F): ±1.5°C (±3°F) or ± 1.5% whichever is greater 100°C to 380°C (212°F to 716°F): ±2.5°C (±6°F) or ± 2.5% whichever is greater



IR temperature resolution	0.1°C (0.2°F)
Repeatability of reading	±1% of reading or ±1°C (2°F), whichever is greater
Response time	150 ms
IR thermometer measurement	Continuous scanning
Minimum measurement distance	0.26 m (0.85 ft)
Type-K range	Included Type-K probe: up to 260°C (500°F)
Type-K accuracy	± (1.0% + 3°C (7°F))
Spotmeter	Center spot on/off
Set-up and service functions
Set-up commands	Local adaptation of units, language, date, and time formats Screen brightness (high, medium, low) Gallery, deletion of images
Set-up commands
Emissivity correction	Yes: 4 preset levels with custom adjustment of 0.1–0.99
Image storage and visual camera
Storage capacity on 4 GB card	50,000 images
Image file format	JPEG w/ spot temp data
Digital camera resolution	2 MP (1600 × 1200 pixels)
Field of view (FOV)	71° × 56°, adapts to IR lens
Light and laser
Flashlight	100 lumens LED, on/off option
Class 1 laser	Projects center spot & outlines circular measurement area to indicate size
Data communication interfaces
Bluetooth^®	BLE
USB	Type-C: data transfer, power
Additional data
Battery type	Rechargeable 3.7 V Li-ion battery
Battery operating time	5 hrs scanning
Battery charging time	4 hrs to 90%
Power management	Adjustable: off, 5 min, 15 min, 30 min
Shock/vibration	25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6)
Drop	Designed for 2 m (6.56 ft)
Weight	0.394 kg (13.9 oz)
Size (L × W × H)	210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)

Package Contains	Camera, wrist strap lanyard, USB cable, pouch, thermocouple,
	printed documentation

The post FLIR TG267 Infrared Thermal Camera 160 × 120 pixels appeared first on Obiat Electronics.

FLIR T840 High-Performance Thermal Camera with Viewfinder

Mike — Thu, 15 Aug 2019 03:36:14 +0000

The FLIR T840 High-Performance Thermal Camera with it’s 180° rotating lens platform and thoughtful ergonomic design helps users quickly diagnose failing components in hard-to-reach areas. A 6° telephoto lens option is available to ensure accurate temperature measurement of small targets from farther distances making it ideal for electrical utilities checking power lines etc.

FLIR T840 Features:

Fast, flexible, accurate – in any work environment
464 x 348 (161,472 pixels) IR Resolution
Viewfinder for bright/outdoors use
Laser Pointer
Two Programmable Buttons
7.5 – 14.0 µm Spectral Range
Predefined list or touchscreen keyboard

AVOID COSTLY OUTAGES

With the FLIR T840 you can safely and comfortably assess equipment and prevent component failure from any vantage point, in any lighting condition

Scan outdoor equipment from a safe distance using the integrated eyepiece viewfinder
Reduce the strain of full-day inspections with the 180° rotating optical block
Share lenses across your fleet of cameras thanks to AutoCal™ optics
Ensure crisp thermal imagery and spot-on temperature readings every time with laser assisted autofocus

QUICKLY MAKE CRITICAL DECISIONS

Advanced imaging technology and superior sensitivity of the FLIR T840 help you make the right call – fast!

Get industry-leading image clarity from FLIR Vision Processing™, MSX®, UltraMax®, and proprietary adaptive filtering
Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement
See problems and make decisions easily thanks to a scratch-resistant, 4-inch LCD display that’s 33% brighter and 4x the resolution of comparable cameras

MAKE YOUR WORK EASIER

Get the most out of your work day with The FLIR T840 and it’s rapid reporting features that help you organize findings in the field.

Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen
Allow customers to observe critical findings in real time through Wi-Fi streaming to the FLIR Tools® app
Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK®-enabled FLIR clamps and multimeters

FLIR T840 Specifications

IR Resolution	464 x 348 (161,472 pixels)
UltraMax®	Quadruples pixel count; activated in menu and processed in FLIR Tools Resolution: 645,888 effective pixels
Object Temperature Range	-4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) 572 to 2732°F (300 to 1500°C)
Digital Zoom	1 to 6x continuous
Detector Type and Pitch	Uncooled microbolometer, 17 μm
Thermal Sensitivity/NETD	<30 mK at 30°C (42° lens)
Spectral Range	7.5 to 14.0 µm
Image Frequency	30 Hz
Lens Identification	Automatic
F-Number	f/1.5 (14° lens) f/1.3 (24° lens) f/1.1 (42° lens)
Focus	Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Minimum Focus Distance	14° lens – 1.0 m 24° lens – 0.15 m; optional macro mode 42° lens – 0.15 m
Macro Mode	71 μm effective spot size (24° lens)
Programmable Buttons	2
Display	4″, 640 x 480 pixel touchscreen LCD with auto-rotation
Digital Camera	5 MP, with built-in LED photo/video lamp
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes	Infrared, visual, MSX®, Picture-in-Picture
Picture-in-Picture	Re-sizable and movable

The post FLIR T840 High-Performance Thermal Camera with Viewfinder appeared first on Obiat Electronics.

FLIR E8-XT Infrared Camera with Extended Temperature

Mike — Wed, 22 May 2019 02:44:32 +0000

The FLIR E8-XT Infrared Camera with Extended Temperature Range is a powerful, cost-effective, easy-to-use troubleshooting tools for building, electrical, and mechanical applications.

The FLIR E8-XT with 320 × 240 infrared pixels resolution—and the ability to accurately measure temperatures from -20°C to 550° will fit your target size, working distance, visual detail needs.

It includes Flir’s MSX® technology for extraordinary thermal imaging detail plus Wi-Fi connectivity to smartphones and tablets via the FLIR Tools® Mobile app makes sharing images and
sending reports from any location easier, enabling you to make critical decisions faster.

With the FLIR E8-XT you can gain the competitive advantage by providing clients with thermal images that clearly reveal the source of electrical, mechanical, and building-related problems.

FLIR E8-XT is Easy to Use

Intuitive graphic interface simplifies measurements in both thermal and MSX mode

• Fully automatic and focus-free
• Accurately measure your target using centre spot or max/min area box
• Navigate easily to on-screen settings, image modes, and measurement tools using simple button controls
• Activate MSX to enhance IR images with visual detail for better perspective and interpretation.

CONVENIENT TO SHARE IMAGES AND FINDINGS

Download images, create reports, and share what you’ve found instantly

• Records standard JPEGs with embedded temperature data for easy sharing with clients
• Wi-Fi connectivity to mobile devices via the FLIR Tools Mobile app
• Rapid Wi-Fi or USB image transfer for documentation
• Image analysis and editing, plus report creation, through FLIR Tools

COMPACT AND RUGGED

Built for portability and safe, efficient use in harsh environments

• Lightweight and well-balanced at just 0.575 kg
• Withstands a 2-meter drop test
• IP54 Enclosure provides a high level of protection
against dust and water
• Comes with 2-year warranty coverage on the
camera and 10-year coverage for the detector

FLIR E8-XT Features:

Higher 320 x 240 (76,800 pixels) infrared resolution
Enhanced thermal sensitivity of 0.06°C (60mK)
Built in visual camera – saves infrared and visual images together
MSX (multi spectral dynamic) image enhancement
Bright colour display
Improved and simplified menu interface
Adjustable level and span for improved thermal image contrast
Included FLIR Tools software for image analysis and reporting
Rugged housing – drop tested to 2 metres
Multiple measurement tools (spot meter, area, auto hot and cold spot)
Thermal blending and isotherm analysis
Supplied in hard transport case with 2 rechargeable batteries, desktop charger, software, USB cable, power charger)
FLIR’s 2/10 warranty with 10 years warranty on infrared detector

The post FLIR E8-XT Infrared Camera with Extended Temperature appeared first on Obiat Electronics.

FLIR E6-XT Infrared Camera plus MSX & WI-FI

Mike — Wed, 22 May 2019 02:08:43 +0000

FLIR E6-XT Infrared Camera plus MSX & WI-FI – Affordable, Professional Thermal Imaging!

SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports, and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E6-XT Infrared Camera has an IP54 enclosure and easily withstands a 2-meter drop test

FLIR E6-XT Infrared Camera Specifications:

Detector Type: Uncooled microbolometer

IR Resolution: 240 × 180 pixels

List of Contents: •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation

Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

Set-up Commands: Local adaptation of units, language, date and time formats

Spectral Range: 7.5–13 µm

COMPLIANCE & CERTIFICATIONS

Certifications: UL, CSA, CE, PSE and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface: USB Micro: Data transfer to and from PC and Mac device

WiFi: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)

Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)

Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery: 0.575 kg (1.27 lb.)

Color: Black and gray

Color palettes: Black & white, iron, and rainbow

f-number: 1.5

Field of view (FOV): 45° × 34°

Focus: Focus free

Image Adjustment: Automatic adjust/lock image

Image Frequency: 9 Hz

Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.

Minimum Focus Distance: 0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail

Picture-in-Picture: IR area on visual image

Spatial resolution (IFOV): 3.4 mrad

Digital Camera Resolution/FOV: 640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Isotherm: Above alarm, below alarm

Object Temperature Range: –20°C to 550°C (-4°F to 1022°F) in two ranges

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

Spot Meter: Center spot; box with min./max.

Thermal Sensitivity/NETD: <0.06°C (0.11°F) / <60 mK

Spotmeter and Area: Center spot; box with min./max.

METER DATA

Display: 3.0 in. 320 × 240 color LCD

POWER

Charging system: Battery is charged inside the camera or in specific charger.

Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management: Automatic shut-down

Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

STORAGE MEDIA

File Formats: Standard JPEG, 14-bit measurement data included

The post FLIR E6-XT Infrared Camera plus MSX & WI-FI appeared first on Obiat Electronics.

Flir E5-XT Infrared Thermal Camera with MSX & WI-FI

Mike — Mon, 20 May 2019 03:33:34 +0000

Flir E5-XT Infrared Thermal Camera with MSX & WI-FI – Affordable, Professional Thermal Imaging!

SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports, and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E5-XT has an IP54 enclosure and easily withstands a 2-meter drop test

FLIR E5-XT Infrared Camera Specifications:

Detector Type: Uncooled microbolometer

IR Resolution: 160 × 120 pixels

List of Contents:
•I nfrared camera
• Hard transport case
• Battery (inside camera)
• USB cable
• Power supply/charger with EU, UK, US and Australian plugs
• Printed documentation

Set-up Commands: Local adaptation of units, language, date and time formats

Spectral Range: 7.5–13 µm

COMPLIANCE & CERTIFICATIONS

Certifications: UL, CSA, CE, PSE and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface: USB Micro: Data transfer to and from PC and Mac device

WiFi: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)

Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)

Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery: 0.575 kg (1.27 lb.)

Color: Black and gray

Color palettes: Black & white, iron, and rainbow

f-number: 1.5

Field of view (FOV): 45° × 34°

Focus: Focus free

Image Adjustment: Automatic adjust/lock image

Image Frequency: 9 Hz

Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.

Minimum Focus Distance: 0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail

Picture-in-Picture: IR area on visual image

Spatial resolution (IFOV): 5.2 mrad

Digital Camera Resolution/FOV: 640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Isotherm: Above alarm, below alarm

Object Temperature Range: –20°C to 400°C (-4°F to 752°F) in two ranges

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

Spot Meter: Center spot; box with min./max.

The post Flir E5-XT Infrared Thermal Camera with MSX & WI-FI appeared first on Obiat Electronics.

FLIR Archives - Obiat Electronics

FLIR VP52-2 Non-Contact AC Voltage Detector with 3 Alarm Indication

FLIR VP52-2 Features:

Description

FLIR VP52-2 Specifications

FLIR MR265 Moisture Meter and Thermal Imager with MSX

GET TO THE PROBLEM FASTER

WORK SMARTER

IMPROVE COMMUNICATION WITH CUSTOMERS

Pin and Pinless Moisture Measurement

FLIR C3-X Compact Thermal Imaging Camera

FLIR C3-X Specifications

FLIR C5 Compact Thermal Camera with Cloud Connectivity

FLIR C5 Compact Thermal Camera with Cloud Connectivity

FLIR Ignite Cloud Solution

FLIR C5 Specifications

Overview

Image Presentation

Measurement & Analysis

Image Storage & Streaming

Communication & Connectivity

Additional Information

FLIR MR277 Building Inspection System with Moisture Hygrometer

FLIR MR277 Building Inspection System with Moisture Hygrometer

FLIR MR277 KEY FEATURES

FLIR MR277 Specifications

FLIR TG267 Infrared Thermal Camera 160 × 120 pixels

FLIR TG267 Thermal Camera Specifications:

FLIR T840 High-Performance Thermal Camera with Viewfinder

FLIR T840 Features:

AVOID COSTLY OUTAGES

QUICKLY MAKE CRITICAL DECISIONS

MAKE YOUR WORK EASIER

FLIR T840 Specifications

FLIR E8-XT Infrared Camera with Extended Temperature

FLIR E8-XT is Easy to Use

CONVENIENT TO SHARE IMAGES AND FINDINGS

COMPACT AND RUGGED

FLIR E8-XT Features:

FLIR E6-XT Infrared Camera plus MSX & WI-FI

FLIR E6-XT Infrared Camera plus MSX & WI-FI – Affordable, Professional Thermal Imaging!

SIMPLE, INTUITIVE CONTROLS

SHARE IMAGES AND FINDINGS EASILY

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

FLIR E6-XT Infrared Camera Specifications:

COMPLIANCE & CERTIFICATIONS

CONNECTIONS & COMMUNICATIONS

ENVIRONMENTAL

IMAGING & OPTICAL

MEASUREMENT & ANALYSIS

METER DATA

POWER

STORAGE MEDIA

Flir E5-XT Infrared Thermal Camera with MSX & WI-FI

Flir E5-XT Infrared Thermal Camera with MSX & WI-FI – Affordable, Professional Thermal Imaging!

SIMPLE, INTUITIVE CONTROLS

SHARE IMAGES AND FINDINGS EASILY

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

FLIR E5-XT Infrared Camera Specifications:

COMPLIANCE & CERTIFICATIONS

CONNECTIONS & COMMUNICATIONS

ENVIRONMENTAL

IMAGING & OPTICAL

MEASUREMENT & ANALYSIS
