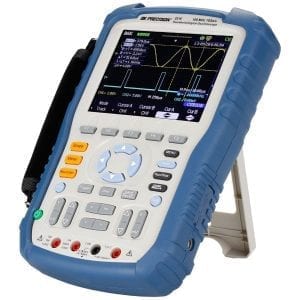

The B&K 2515 – Two Isolated Channels, 60MHz Bandwidth & 1000 V CAT II, 600 V CAT III rated.
The B&K 2515 features two fully isolated channels that are safety rated CAT II 1000 V / CAT III 600 V and allow users to accurately and safely make high voltage and current measurements when the signal reference is floating. Both models feature an electrically isolated circuit design between inputs and the digital acquisition circuit. Isolating the ground references eliminate ground loops and help reduce channel noise and crosstalk.
The B&K 2515’s trend plot function enables data logging with the oscilloscope or the built-in full featured, 6000-count digital multimeter. With the push of a button, you can quickly toggle between oscilloscope and DMM modes. The scope recorder function offers users 7 Mpts record length on a single channel or 3.5 Mpts on dual channel. A USB host port and a mini-USB device port are standard interfaces on all models.
Included: Two touch-protected 250 MHz bandwidth, x10 probes rated for 1000 V CATII, 600 V CA TIII measurements; pair of DMM test leads, 7.4 V Li-ion battery, USB cable, probe compensation connector, AC power adapter, certificate of calibration and test report, user’s manual, and travel hard case and straps.
B&K 2515 Features:
- 60 MHz bandwidth
- 1 GSa/s sample rate
- 2 fully-isolated and floating 1,000 V CAT II, 600 V CAT III rated inputs
- Deep waveform memory up to 2 Mpts
- Built-in 6000-count DMM w/dedicated terminals for current measurement
- Scope and meter trend plot functions for data logging
- Bright 5.7″ color display
- Compact and lightweight – 3.4 lbs
- FFT incl. 4 additional math functions – Add, Subtract, Multiply, and Divide
- 32 automatic measurements
- USB host port for saving and recalling waveform setups, data, and screenshots on a USB flash drive
- USB connectivity for remote PC control via soft panel
- Includes digital filters with adj. limits, scope and waveform recorder mode
- Multi-language user interface
- Up to four hours of continuous battery operation
- Hard Travel Case
- Three-year warranty
