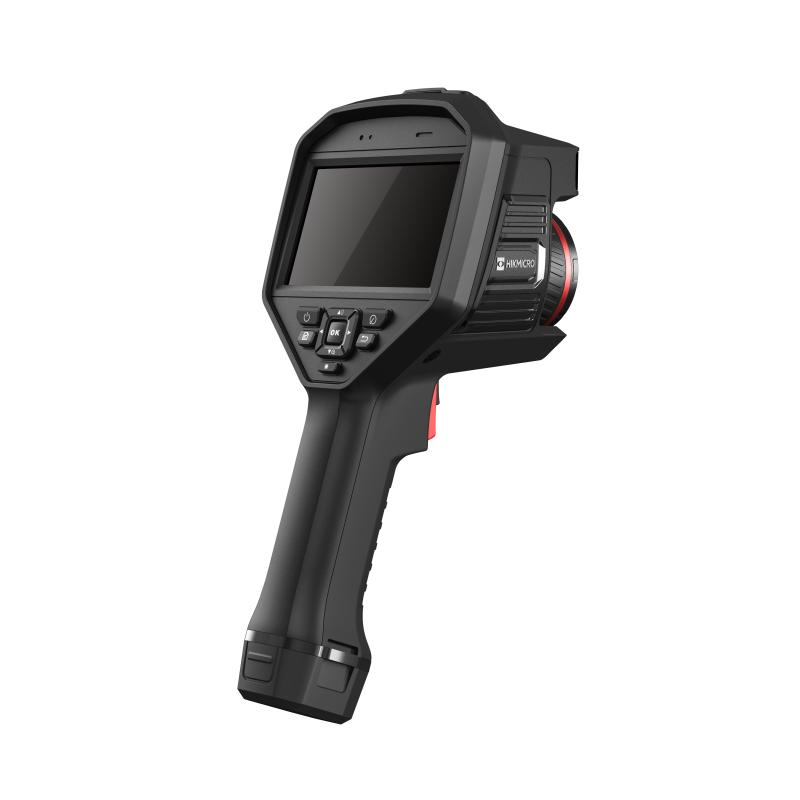

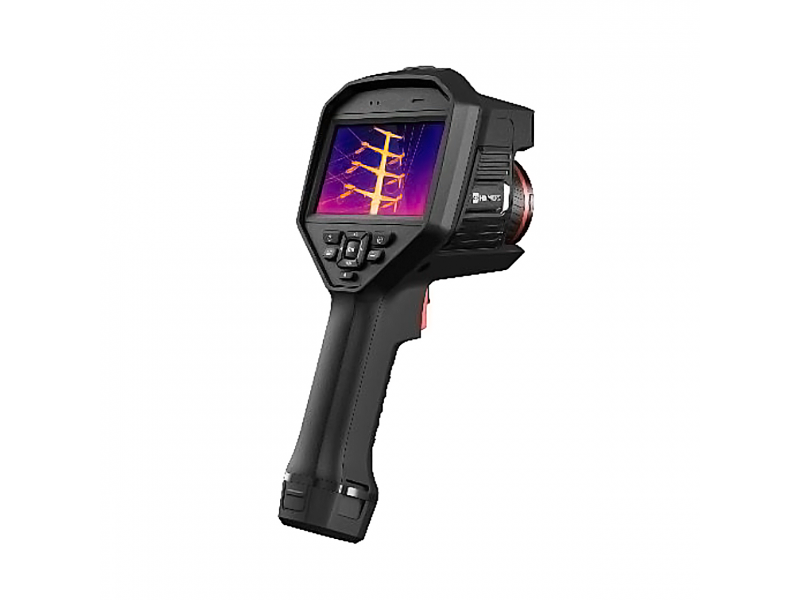

HIKMICRO Gx1 Series Thermal Cameras
Superior High-Resolution Thermal Imaging for Efficient Inspections
Discover the pinnacle of thermal imaging technology with the HIKMICRO Gx1 Series, designed to provide ultra-high resolution and efficient inspections. Whether you’re conducting industrial furnace applications or metal smelting inspections, these thermal cameras offer unparalleled accuracy and functionality.
Exceptional Clarity with 640×480 @35mK NETD
The HIKMICRO Gx1 Series features a highly sensitive VOx detector with a 640 x 480 IR resolution, offering an impressive 307,200 pixels of thermal vision. This sensitivity ensures that you capture every small thermal detail, making it easier to identify issues promptly.
Versatile Focus Modes for Precision
To adapt to various inspection scenarios, the Gx1 Series supports five quick focus modes—Laser Assisted AF, Continuous AF, AF, Manual Focus, and Touch AF. With a fast focus speed of just 2 seconds, you can quickly obtain sharper images for the most accurate temperature measurements.
Flexible Field of View with Add-on Lenses
Customise your camera’s capabilities with three add-on lenses: 0.5X, 2X, and 3.3X. These lenses provide different fields of view, giving you more options depending on your specific needs. Whether you require a wide-angle lens for broader inspections or a narrow lens for focused detail, the HIKMICRO Gx1 Series has you covered.
Need help determining the best lens for your application based on distance, FOV or size? Click below to access our Spot Size Calculator tool.
Extreme Temperature Range Capability
The HIKMICRO Gx1 Series accommodates a wide range of temperatures, up to 2000°C (3992°F), perfectly suited for rigorous industrial applications like refractory and furnace inspections. (*Applicable to G41H and G61H models only)
Built-in Laser Distance Meter
Measure distances and areas accurately with the embedded laser distance meter. This feature significantly enhances convenience by providing precise distance measurements that aid in setting parameters and generating detailed reports.
Multiple Imaging Modes
Choose from five distinct imaging modes: Thermal, Fusion, PIP (Picture in Picture), Blending, and Optical. These options allow you to select the mode that best suits your inspection requirements, ensuring optimal clarity and detail in every situation.
Comprehensive Image Annotations
Enhance your inspection efficiency with complete image annotations, including voice, text, and QR Code Scan capabilities. Integrated GPS and compass functions automatically add location and direction information to enhance your data accuracy and productivity.
Long-lasting Power with Interchangeable Battery System
The Gx1 Series includes three interchangeable Li-ion batteries and a dual bay charger, providing up to 12 hours of continuous operation. Tackle extensive inspections without worrying about battery life, as you can easily swap out batteries for uninterrupted performance.
Advanced Radiometric Video Analysis
Record radiometric video directly onto the in-camera SD card, capturing all temperature data for in-depth post-analysis. Seamlessly integrate with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and comprehensive processing of thermal data.
Product Models Overview
G41
- IR Resolution: 480 x 360 (172,800 pixels)
- NETD: < 35 mK (@ 25 °C, F#=1.0)
- Image Frequency: 50 Hz
- Detector Pitch: 17 μm
- Spectral Range: 7.5 to 14 μm
- Focal Length: 25 mm
- F-number: F 1.0
- Field of View (FOV): 18.7° × 14°
- Spatial Resolution (IFOV): 0.68 mrad
- SuperIR: 960 x 720 (691,200 pixels)
- Min. Focus Distance: 0.25 m (0.82 ft)
- Object Temperature Range: -20 °C to 650 °C (-4 °F to 1202 °F)
- Accuracy: Various ranges provided with precision specifications.
G61
- IR Resolution: 640 x 480 (307,200 pixels)
- NETD: < 35 mK (@ 25 °C, F#=1.0)
- Image Frequency: 50 Hz
- Detector Pitch: 17 μm
- Spectral Range: 7.5 to 14 μm
- Focal Length: 25 mm
- F-number: F 1.0
- Field of View (FOV): 25° × 19°
- Spatial Resolution (IFOV): 0.68 mrad
- SuperIR: 1280 x 960 (1,228,800 pixels)
- Min. Focus Distance: 0.25 m (0.82 ft)
- Object Temperature Range: -20 °C to 650 °C (-4 °F to 1202 °F)
- Accuracy: Various ranges provided with precision specifications.
G41H and G61H
- Enhanced Temperature Range: Up to 2000 °C (3632 °F)
- IR Resolutions and full specifications similar to the G41 and G61 models.
Upgrade your inspection capabilities with the HIKMICRO Gx1 Series – your go-to solution for high-resolution thermal imaging and reliable performance in demanding industrial environments.
