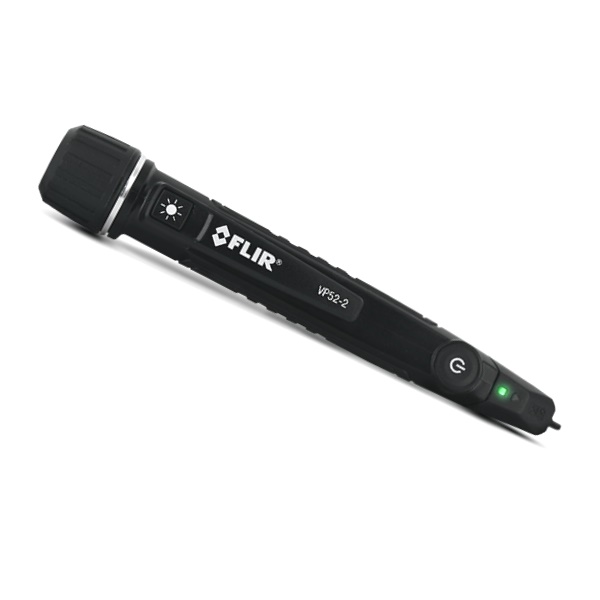

Use the FLIR VP52-2 Non-Contact AC Voltage Detector to reliably check if an AC circuit is live before beginning work; detect voltage on exposed conducting parts or through insulation; identify live wires within electrical panels, switches, and outlets; or trace live wires and map circuits.
With an ergonomic and drop-tested design, the FLIR VP52-2 is the right choice for professionals performing field troubleshooting and verification of electrical installations within residential, commercial, and industrial buildings
The FLIR VP52-2 Non-Contact AC Voltage Detector detects the presence of AC voltage at electrical outlets, junction strips, electrical circuits, and other devices without having to contact the device physically.
The VP52-2 has a minimum excitation voltage of 190 V AC (this is its normal, or low sensitivity, mode) and a high sensitivity mode allowing detection down to 24 V AC. Tactile vibration, audible beeper, and visual cues alert the user when AC voltage is present.
FLIR VP52-2 Features:
- Beeper sound
- Vibration feedback alarms
- Optimized High/Low sensitivity ranges
- Multi-color LED alarm indicators
- Bright flashlight
- Dual LED illuminator at probe tip
- ON/OFF button with auto power off (APO)
- CAT IV 1000 V safety rated
- Low battery indication (status LED flashing amber)
- Robust pocket clip
- Limited Three-Year Warranty
- 3 metre drop-tested
Description
1. AC Voltage sensor
2. Tip lighting
3. Alarm indicator
4. Status indicator
5. Power button: ON (short press); OFF (long press); Low/high sensitivity toggle (short press with meter ON)
6. Pocket clip
7. Flashlight ON/OFF button (long press)
8. Battery compartment access cap
9. Flashlight
FLIR VP52-2 Specifications
| Measurement | |
| AC Voltage Range (default, solid green light) | 190 to 1000 V AC |
| High-Sensitivity Mode (solid amber light) | 24 to 1000 V AC |
| Frequency Range | 45 to 65 Hz |
| Meter Data | |
| Sound Alert | Yes |
| Flashing LED Alert | Yes |
| Vibration Alert | Yes |
| Flashlight | Yes |
| Tip Light | Yes |
| Category Rating | CAT IV 1000 V |
| General Information | |
| Warranty | Limited 3-year |
| Certifications | CE, RCM |
| Power System | |
| Power Requirements | 2 × AAA alkaline batteries |
| Battery Life | ~5 hours continuous (flashlight off) |
| Low Battery Voltage | Status LED flashes amber colour |
| Auto Power Off | After 3 minutes of inactivity |
| Environmental Data | |
| Drop Test | 3 metre |
| Operating Ambient Temperatures | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| Physical Data | |
| Weight | 59 g including batteries |
| Dimensions (L × W × H) | 158.5 × 26 × 29 mm |
