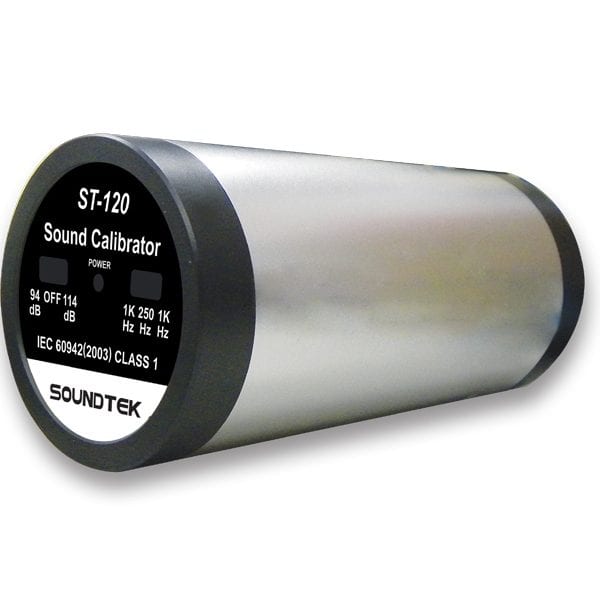

Tenmars ST-120 Sound Level Meter Calibrator

Product Description.

For 1/2-inch condenser microphone calibration
IEC 60942:2003 Class1/ANSI S1.40-1984.
Output sound level: at 94dB and 114dB.
Frequency: 1000Hz ±1% Class1 A, C, Z;
250Hz ±1% (Z).
Sound pressure levels: at 94dB and 114dB.
Harmonic wave distortion ±3%.
Output feedback detection.
Low battery indication

Authorised Australian Distributor

Click here to Make an Enquiry

If you would like more information regarding this product, simply email us here.

SKU: TENMARS ST-120 Categories: Sound Level Meters, Tenmars Tags: Calibrators, Sound Level, Tenmars

Description
Reviews (0)

Tenmars ST-120 Class 1 Sound Level Meter Calibrator

Specifications
Output Frequency	1000Hz ±1% (Class1.) A, C, Z
Accuracy	94dB ±3dB; 114dB ±0.5dB
Environmental Temperature	20°C
Relative Humidity	85%
Atmospheric Pressure	850mbar to 1050mbar

General Specifications
Power Supply	9 Volt battery 006P, IEC 6F22, NEDA 1604
Dimensions	125mm (L) x 48mm (Dia)
Weight	approx. 285g (including batteries)

Ordering Information

Model Name	Description
Tenmars ST-120	Class1 Sound Level Calibrator Included accessories: Battery, and Owner’s manual
