HT Italia GEO 416 Earth Resistance and Ground Resistivity Tester with Data Download



HT_Italia_Ca

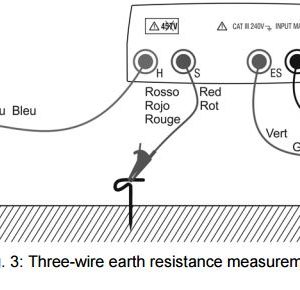

GEO416 has been developed to measure earth resistance with 2 wires, 3 wires and 4 wires by voltammetric method and ground resistivity. These values are extremely important while designing earth systems.

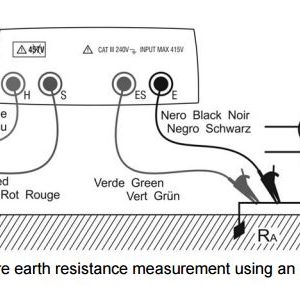

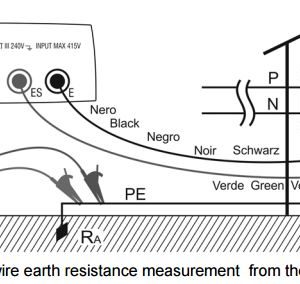

The 2-wire method, by taking advantage of appropriate external masses as a reference (metal surfaces, tubes, neutral conductor, etc.), is particularly useful in private environments where, because of logistic problems, it is not possible to use the 3-wire method. The device allows carrying out measurements with a wide measuring range (up to 50kOhm) with an efficient internal compensation of the disturbance effects found on the installations. GEO416 is provided with an internal memory for saving measurements and with an optical/USB interface for transferring measured data onto the PC

WARRANTY 3

logopdf (2) GEO 416 Data Sheet
