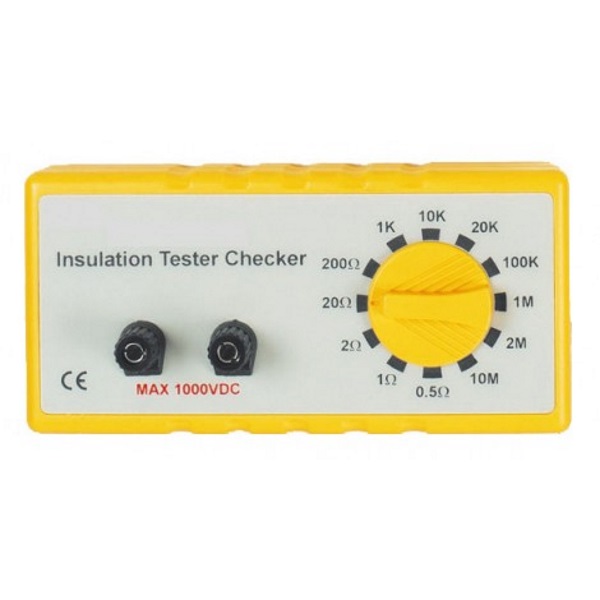

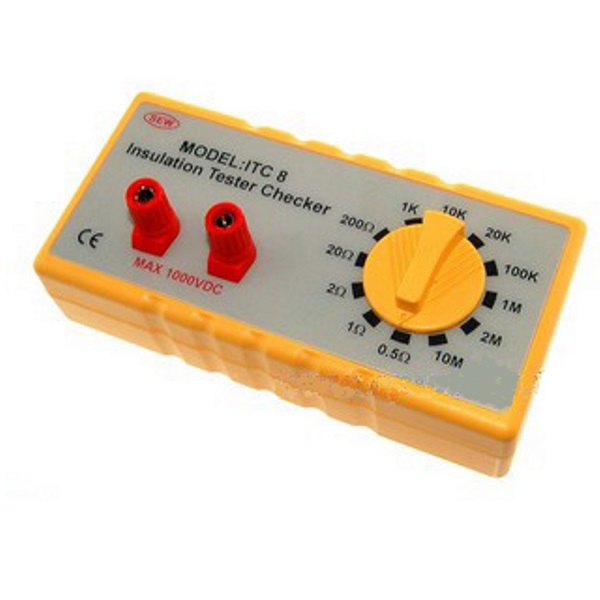

SEW ITC8 Insulation Resistance Tester Check Box has a range of user selectable resistances chosen by it’s rotary dial. The insulation tester connected to it and the resistance reading on the screen is compared to the known resistance on the SEW ITC8. This gives an indication of the accuracy of the instrument and if there is a need to re-calibrate.
This SEW ITC8 Insulation Resistance Tester Check Box with it’s 12 resistance settings ranging from 0.5 Ohms to 10MOhms allows the user to regularly verify that their instrument are accurate (within the tolerance of theSEW ITC8).
The SEW ITC8 Insulation Resistance Tester Check Box is useful not only on the test bench but also in the field.
SEW ITC8 Insulation Resistance Tester Check Box Features:
- A range of user selectable resistances from 500 milliohms to 10 megohms
- Portable and lightweight
- Suitable for use on the bench and in the field
- Gives the user confidence in meter accuracy
- Quick and easy to use
- Input voltage up to 1000VDC
SEW ITC8 Insulation Resistance Tester Check Box Specifications:
- Resistance Settings: 0.5Ω, 1Ω, 2Ω, 20Ω, 200Ω, 1kΩ, 10kΩ, 20kΩ, 100kΩ, 1MΩ, 2MΩ, 10MΩ
- Accuracy: 0.5Ω – 2Ω ± 0.05Ω,
20Ω – 10Ω ± 2% - Maximum Voltage Input: 1000V DC
- Case: Impact Resistant ABS
