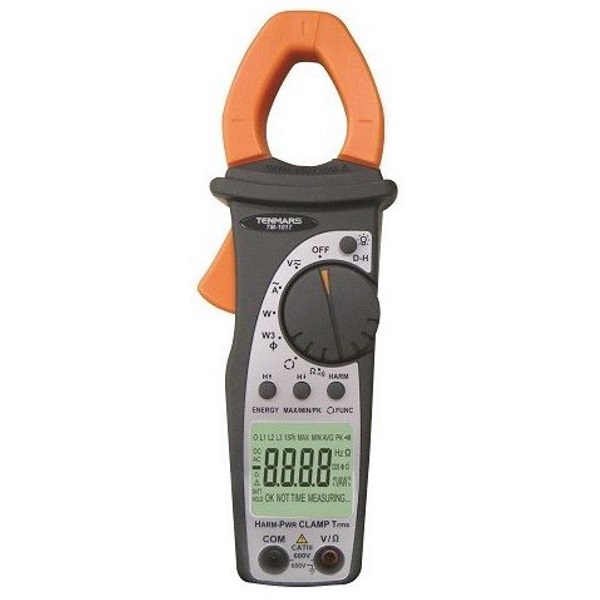

The Tenmars TM-1017 clamp meter can measure AC current of up to 400A, and can measure AC and DC voltage, resistance, continuity and frequency. The TM-1017 can also measure active power, reactive power and apparent power, energy as well as power factor on single and three phase systems with a maximum conductor size of 30mm.
Phase sequence and rotation is also possible with the Tenmars TM-1017 and the user can also measure harmonics to 25th order with total harmonic distortion (THD). Information is presented on a digital LCD display with backlight and bargraph.
Maximum, minimum, and peak hold functions are standard on the Tenmars TM-1017 for capture of peak currents, or max/min readings. This is an autoranging meter, which removes the need to select the correct range when using a particular function as the TM-1017 does this automatically to suit the measurement.
The Tenmars TM-1017 is supplied complete in carry pouch with factory calibration certificate, user manual, battery and test leads.
|Maximum Current||400 Amps|
|Display Counts||10000 (Backlit LCD display)|
|Maximum Conductor Size||30mm|
|AC Current Range||0.1A to 400A, ±(1.0% of rdg + 3 dgts)|
|AC Voltage Range||0.1V to 599.9V, ±(1.0% of rdg + 3 dgts)|
|DC Voltage Range||0.1V to 599.9V, ±(1.0% of rdg + 3 dgts)|
|Resistance||0.1 ohm to 1999 ohms ±(1.0% of rdg + 5 dgts)|
|Frequency||40Hz to 399.9 Hz ±(0.5% of rdg + 1 dgt)|
|Auto Power Off||Yes|
|Power Supply||2 1.5V type ‘AAA’ batteries|
|Dimensions||205mm (L) x 64mm (W) x 39MM (D)|
|Weight||280g approx. including batteries|
