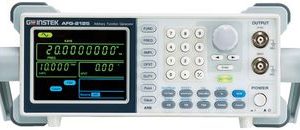

GW Instek AFG-2225 Arbitrary Function Generator

GwInstek_logo_index

Features

  •  Wide Frequency Ranges From 1μHz to 25MHz (sine/square wave)
  •  1 μHz Resolution in Full Range
  •  Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Waveform for Both Channels
  •  True Dual-Channel Output, CH2 Provides the Same Characteristics as CH1
  •  Couple, Tracking, Phase Operations of Dual Channel are Supported
  •  1% ~ 99% Adjustable Duty Cycle for Square Waveform

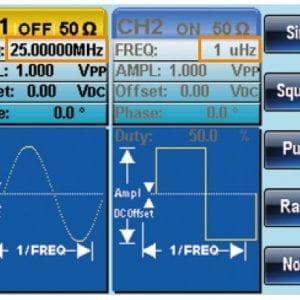

  •  High Resolution and Colored TFT LCD with Friendly User Interface
  •  Multiple Editing methods to Edit Arbitrary Waveform Easily
  •  Built-in Standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter
  •  USB Host/Device Interface for Remote Control and Waveform Editing

HT 4020 Data SheetAFG-2225_Data sheet
