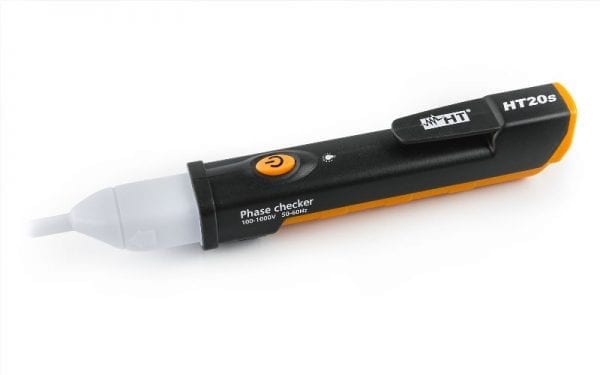

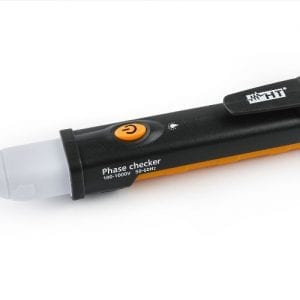

HT ITALIA HT20S Phase Detector with Torch

HT_Italia_Ca

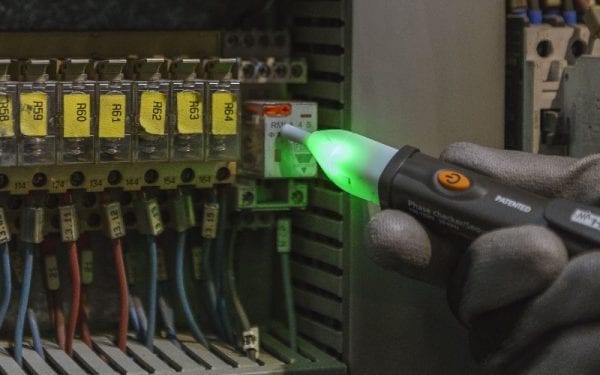

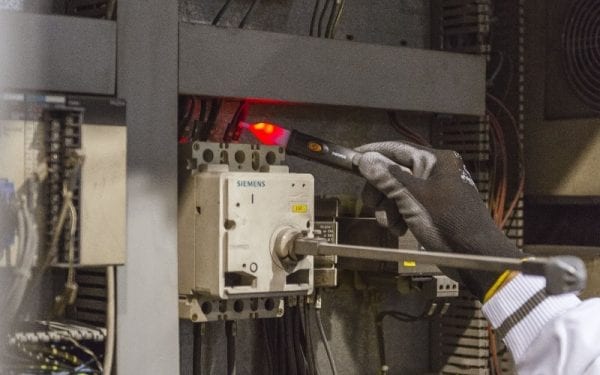

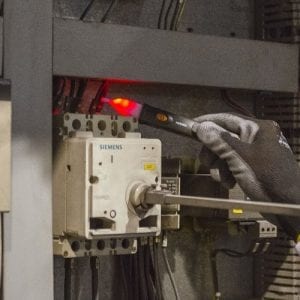

Pen phase detector HT ITALIA HT20S allows very quickly checking for the presence of AC voltage on any kind of electric installation with and without direct contact.

A Red LED turns on and a buzzer sounding reveal the presence of voltage.

Features:
  • AC voltage range detection: 100 – 1000V AC to ground
  • Frequency range: 50/60H
  • Safety: IEC/EN61010-1
  • Category of measurement: CAT IV-1000V
  • Insulation: double insulation
  • Pollution degree: 2
  • Red LED indication of detected voltage
  • Buzzer indication
  • White LED torch with ON/OFF key
  • Power supply: 2×1.5V batteries alkaline type AAA
  • Working temperature: -10°C to 50°C
  • Working humidity: <75%RH (-10°C to 40°C),<45%RH (40°C to 50°C)
  • Size (L-W-H): 160 x 26 x 20mm
  • Weight (included batteries): 48g

Warranty 4

PDF Logo    HT20S User Manual
